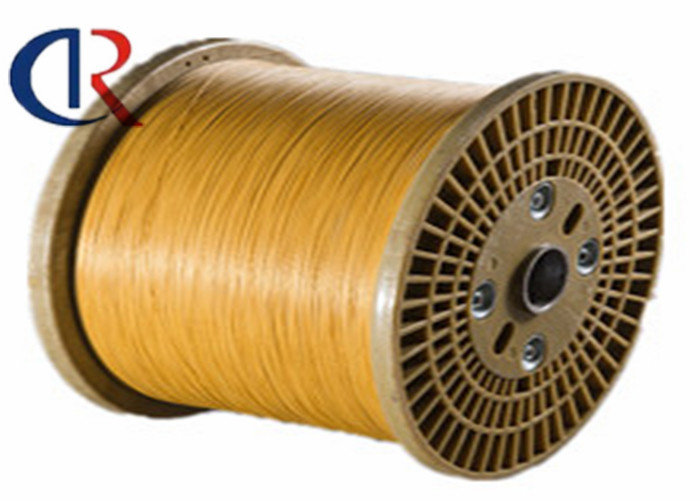

Brown KFRP Material Non Metallic Strengthening Thermal Pultrusion Technique

Brown KFRP Material Non Metallic Strengthening Thermal Pultrusion Technique

  • Brown KFRP Material Non Metallic Strengthening Thermal Pultrusion Technique
Brown KFRP Material Non Metallic Strengthening Thermal Pultrusion Technique
Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO9000
Model Number: Φ0.4-Φ0.5
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 50000km/month
Contact Now
Detailed Product Description
Product Name: KFRP Stength Memeber For Fiber Cable Material: FRP
Function: Strengthen Packing: Plywood Reel Or Plastic Reel
Diameter: 0.4mm-5.0mm Spool Length: 50.4km/reel, 25.2km/reel Or Customized
Tensile Strength: ≥1700 Mpa
High Light:

aramid reinforced plastic

,

kevlar fiber epoxy reinforced plastic

Aramid Fiber Rods ARP Rods for Fiber Optic Cables



Aramid Fiber Rod/ ARP rod is a new type of non-metallic strength member for fiber optical cables. It is made by thermal pultrusion technique which combines complex resin as body material with aramid fiber as strength member at a certain ratio. It has been widely employed in the internet access network and it works particularly well with the indoor fiber optical cable network.



ARP Rod Features

1) Light weight and high strength, both the strength and modulus of ARP rod are better than that of steel and fiberglass strength member.

2) Low expansion, ARP rod covers a wide range of temperatures; the linear expansion coefficient is less than that of steel and fiberglass strength member;

3) Impact resistance, resistance to fracture, Hongbo ARP rod reaches not only ultra-high tensile strength (≥1700Mpa), even in case of breakage it can still maintain a tensile strength of about 1300Mpa;

4) Good flexibility, the light and soft texture allows it to bend easily; the minimum bending diameter is only 24 times of the diameter of the rod;

5) Indoor fiber optic cable with compact structure, excellent bending properties, especially suitable for complex wiring indoor environment.



Aramid Rod Specification

Normal Diameter Φ (mm) Coated and Uncoated



Core 0.40 0.50
Coated 0.45 0.58



Technical Parameter



Aramid Rod Test Item Unit (or Condition) Technical Parameter
Diameter Tolerance Core mm ±0.03
Coated mm ±0.03
Out-of-roundness Core % ≤5%
Coated % ≤5%
Tensile Strength MPa ≥1600
Tensile Elastic Modulus GPa ≥52

Minimum Bending

Performance

Bending Radius 10D. No bur, no crack, no break, no decomposition, smooth surface

High Temperature

Bending Performance

80°C, 24h Bending Radius 30D. No bur, no crack, no break, no decomposition, smooth surface

Low Temperature

Bending Performance

-40°C, 24h Bending Radius 30D. No bur, no crack, no break, no decomposition, smooth surface

Note: As for coated aramid rod, only the diameter tolerance and out-of-roundness of the coated ARP will be checked, no check for the core only.
