FRP / KFRP Rod Central Strength Member CSM Φ0.4 - Φ5.0 Enhancing Cables Tensile

FRP / KFRP Rod Central Strength Member CSM Φ0.4 - Φ5.0 Enhancing Cables Tensile

  • FRP / KFRP Rod Central Strength Member CSM  Φ0.4 - Φ5.0 Enhancing Cables Tensile
FRP / KFRP Rod Central Strength Member CSM  Φ0.4 - Φ5.0 Enhancing Cables Tensile
Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO-9001
Model Number: Φ0.4-Φ5.0
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation

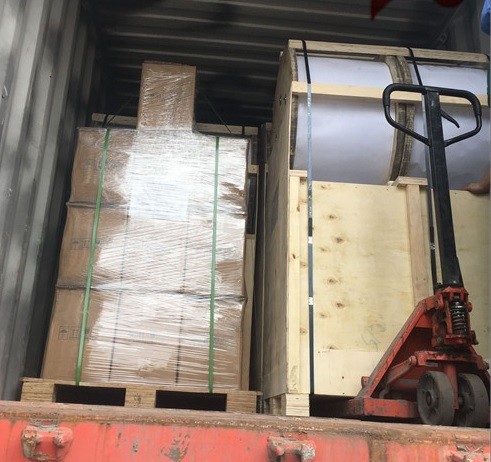

Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 5000Km/month
Contact Now
Detailed Product Description
Flexural Modulus(Gpa): ≥50 Elongation At Break (%): ≤4
Diameter Tolerance (mm): ±2% Function: Strengthen
Diameter: 0.4mm-5.0mm Spool Length: 50.4km/reel, 25.2km/reel Or Customized
Tensile Modulus: ≥50 Gpa
High Light:

frp member

,

frp strength member

FRP/KFRP Rod Central Strength Member CSM,(Φ0.4-Φ5.0)Non-Metallic



Basic Info:

  • Technique: Pultrusion

  • Type: Themosetting Plastic Profiles

  • Diameter Ranges: 0.40 mm to 5.00 mm

  • HS Code: 70199090

  • Materials: Resin, E-glass Fiberglass, Agents, etc.

  • Applications: Central or peripheral strength member for fiber optical cables

  • Origin: Jiangsu, China



Product Description:



Non-metallic FRP Rod strength member, usually located at the center or the periphery of optical cables, serves as the important component of optical cables by supporting optic fiber bundles and enhancing cables tensile strength.


Properties of Non-metallic FRP Rod Strength Member

A. High strength
FRP is stronger than structural steel on a pound-for pound basis.

B. Light weight
FRP is 20-25% the weight of steel and 70% the weight of aluminum. FRP are easily transported, handled and lifted into place.

C. Anti-corrosion
FRP will not rot and are impervious to a broad range of corrosive elements. This feature makes FRP a natural selection for indoor or outdoor structures in corrosive environments.

D. Electro-magnetic transparency
FRP are transparent to radio waves, microwaves and other electromagnetic.

E. Non-conductive
FRP has low thermal/ electrical conductivity.

F. Dimensional stability
The coefficient of thermal expansion of FRP is slightly less than steel and significantly less than aluminum.
