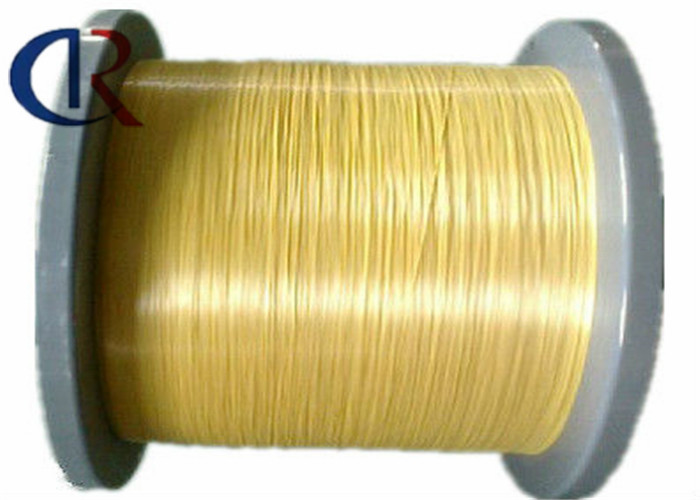

Strength KFRP Member Reinforced For Fiber Optic Cables High Temperature Bending

Strength KFRP Member Reinforced For Fiber Optic Cables High Temperature Bending

  • Strength KFRP Member Reinforced For Fiber Optic Cables High Temperature Bending
Strength KFRP Member Reinforced For Fiber Optic Cables High Temperature Bending
Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO9000
Model Number: Φ0.4-Φ0.5
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 50000km/month
Contact Now
Detailed Product Description
Product Name: KFRP Stength Memeber For Fiber Cable Material: Kevlar Fiber Epoxy Reinforced Plastic
Function: Strengthen Packing: Plywood Reel Or Plastic Reel
Diameter: 0.4mm-5.0mm Spool Length: 50.4km/reel, 25.2km/reel Or Customized
Tensile Strength: ≥1700 Mpa
High Light:

aramid frp

,

kevlar fiber epoxy reinforced plastic

AFRP/KFRP strength member KFRP rod, KFRP strength member, KFRP reinforced core.







Aramid FRP (KFRP or AFRP) is a new kind of non-metallic strength member for fiber optic cables.




Specification for KFRP:



Property Index
Appearance No defects harmful use such as cracks,uneven spots,and contamination
Color Natural
Outer Diameter of KFRP with coating(mm) D±0.05
Non-circularity KFRP with coating(%) ≤5
Density(g/cm3) 1.3~1.4
Tensile Strength(Mpa) ≥1700
Tensile Elastic Modulus(Gpa) ≥50
Elongation at break(%) ≤3.0
Minimum Bending Diameter(bending diameter is 20times of the diameter of KFRP rod) No bur, crack and break
High temperature Bending Test(100°C,24h,bending diameter is 60 times of the diameter of KFRP rod) No bur, crack and break
Low temperature Bending Test(-40°C,24h,bending diameter is 60 times of the diameter of KFRP rod) No bur, crack and break
