| Place of Origin: | China |
| Brand Name: | Dingrong |
| Certification: | ISO9001 |
| Model Number: | Φ0.4-Φ5.0 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |

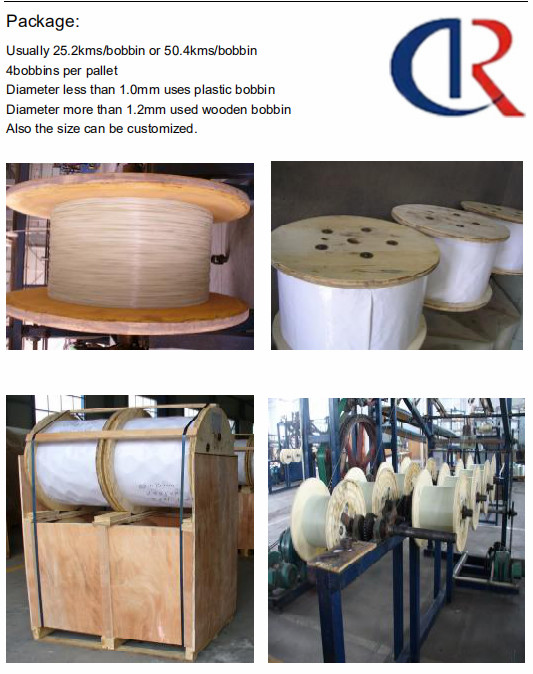

| Packaging Details: | Plywood reel or plastic reel |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000Km/month |
| Material: | FRP/KFRP | Product Name: | FRP/KFRP Strength Member |
|---|---|---|---|
| Function: | Strengthen | Diameter: | 0.4mm-5.0mm |
| Spool Length: | 50.4km/reel, 25.2km/reel Or Customized | Tensile Strength: | ≥1100 Mpa |
| High Light: | aramid reinforced plastic,aramid fiber reinforced plastic |
||
KFRP strength member/Fiber Reinforced Plastic FRP Rod(Φ0.4-Φ5.0)
Product introduction:
KFRP is a new type of non metallic fiber optical cable strength member; it has been widely employed in the internet access network, it works particularly well with the indoor fiber optical cable network. Gongfei places its entire KFRP Aramid fiber optical cable products and technologies under the protection of intellectual property rights registered and patented with the national Government.
Features
Insensitive to lightning strike, it is suitable for the area with frequent lightning and rain.
Light weight high strength, low density and high ratio of strength/weight.
Low expansion, it has low expansion coefficient in wide range of temperature settings.
Impact and break resistance, the tensile strength remains around 1300Mpa even it is broken.
Good flexibility, the light and soft texture allows it bend easily, the minimum bending diameter is only 20 times of the diameter of the rod. In a complex close quarter indoor environment with limited wiring space, KFRP can be the preferred choice.
Specifications
| Test Item | Units(or Criteria) | Technical Specification | |
| Diameter Tolerance | Core | mm | ±0.05 |
| Coated | mm | ±0.05 | |
| Ovality | Core | % | <=5 |
| Coated | % | <=5 | |
| Tensile Strength | MPa | >=1600 | |
| Tensile Elastic Modulus | GPa | >=52 | |
| Minimum Bending Performance | - | Bending radius 10D. No bur and crack or break, smooth surface, self-straighten, non destructible. | |
| High temperature bending performance | 80ºC,24h | Bending radius 30D. No bur and crack or break, smooth surface, self-straighten, non destructible. | |
| Low temperature bending performance | -40ºC,24h | Bending radius 30D. No bur and crack or break, smooth surface, self-straighten, non destructible. | |
