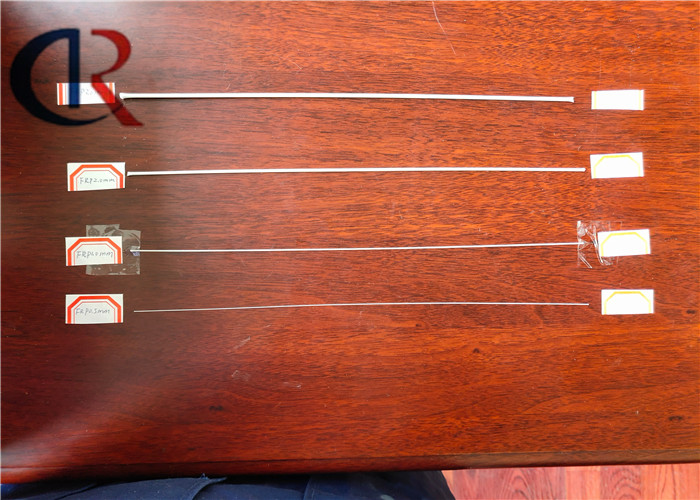

0.4mm - 5.0mm FRP Strength Member Glass Fiber Through Pultrusion Technology

0.4mm - 5.0mm FRP Strength Member Glass Fiber Through Pultrusion Technology

0.4mm - 5.0mm FRP Strength Member Glass Fiber Through Pultrusion Technology

Product Details:

Place of Origin: china
Brand Name: Dingrong
Certification: ISO:9001
Model Number: FRP:Φ0.4-Φ5.0

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 5000km/month
Contact Now
Detailed Product Description
Product Name: FRP Core Material: FRP
Function: Strengthen Packing: Plywood Reel Or Plastic Reel
Diameter: 0.4mm-5.0mm Spool Length: 50.4km/reel, 25.2km/reel Or Customized

Fiber Reinforced Plastic Rod (FRP/KFRP) For Optic Cable

FRP strength member is to use epoxy resin as foundation combined with the strength of glass fiber through pultrusion technology to produce a new type of high performance non-metallic composite material which is used to make various optical fiber cables.

Features:
Light weight high strength, low density and high ratio of strength/weight.
Insensitive to lightning strike, it is suitable for the area with frequent lightning and rain.
Low expansion, it has low expansion coefficient in a wide range of temperature settings.
Free from interference, it can resist induction interference; can be installed close to the power line and electronic devices.
Corrosion free, which eliminates harmful gas born from metallic corrosion which can negatively, affects cable’s transmission quality.


Specifications:
Diameter (0.45-0.8mm)
Length: Upon customer request

Technical performance indicators:
Test item
Units(or Criteria)
Specifications
Appearance
Even in color and luster, no bur and crack, smooth surface
Diameter Tolerance
mm
±0.03
Tensile Strength
MPa
≧1200
Tensile Modulus
GPa
≧50
Elongation at break
%
≦4
Minimum bending radius
40D
No bur and crack or break, smooth surface, self-straighten
High temperature bending performance
50D,100℃±1℃, 120h
No bur and crack or break, smooth surface, self-straighten
Specifications in the above table conform to the industrial standard of China, the
customized product is available on request.



Product Usage:

• FRP is used as strength member as it provides high tensile strength & bending properties. • The combination of Aramid yarn and a specific resin gives high tensile strength , low bending radius and light weight making it suitable for FTTH / Drop/Ariel cables.



Product Details :

• ARP provides strength to the cable with low bending radius . • ARP prevents cable buckling with high modulus. • ARP is very light weight. • Various length options provide flexibility & throughput on production floor.
