Strength Member FRP Rod For Fiber Optic Cable 1.7mm

Strength Member FRP Rod For Fiber Optic Cable 1.7mm

  • Strength Member FRP Rod For Fiber Optic Cable 1.7mm
  • Strength Member FRP Rod For Fiber Optic Cable 1.7mm
  • Strength Member FRP Rod For Fiber Optic Cable 1.7mm
  • Strength Member FRP Rod For Fiber Optic Cable 1.7mm
Strength Member FRP Rod For Fiber Optic Cable 1.7mm
Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO9001
Model Number: Φ1.7
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation

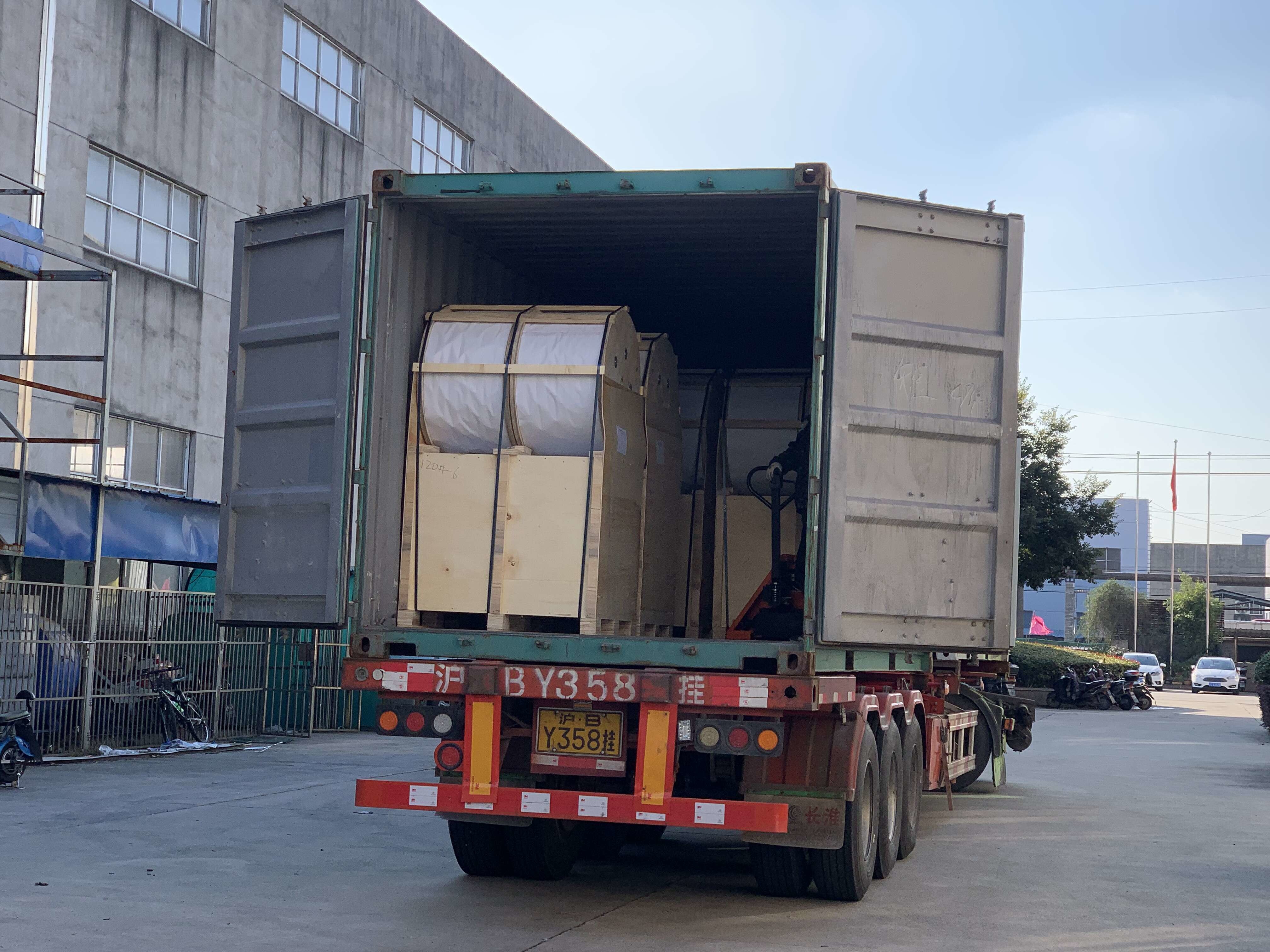

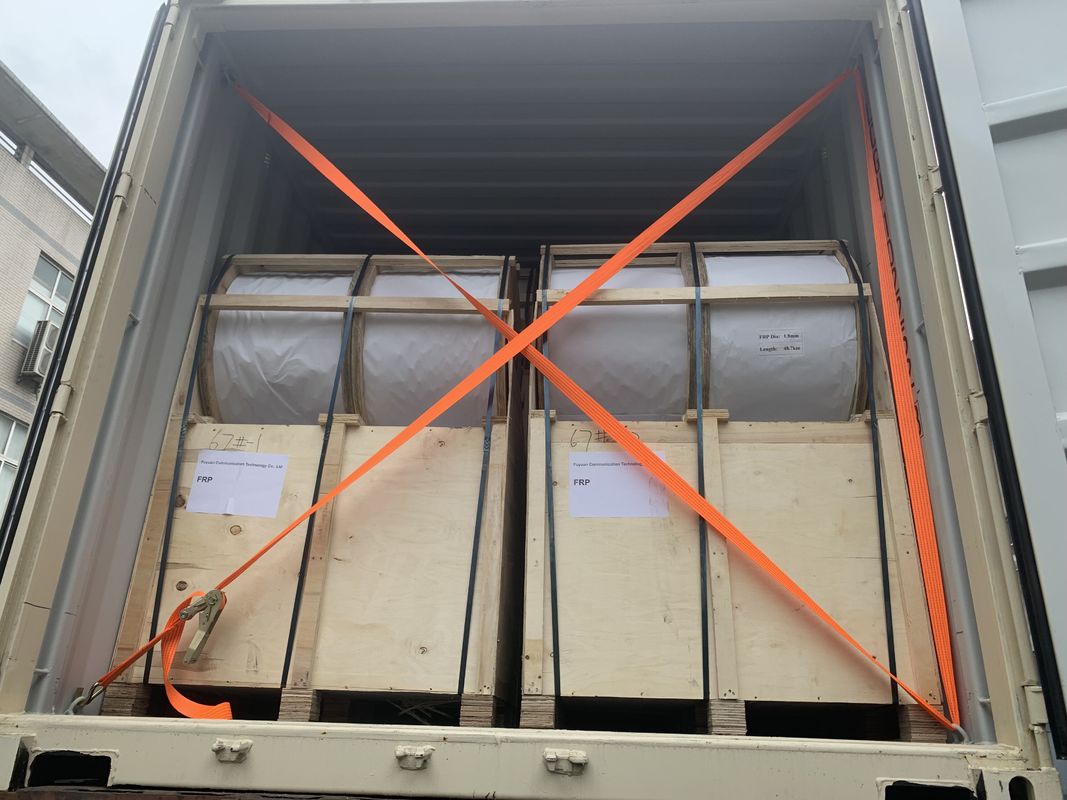

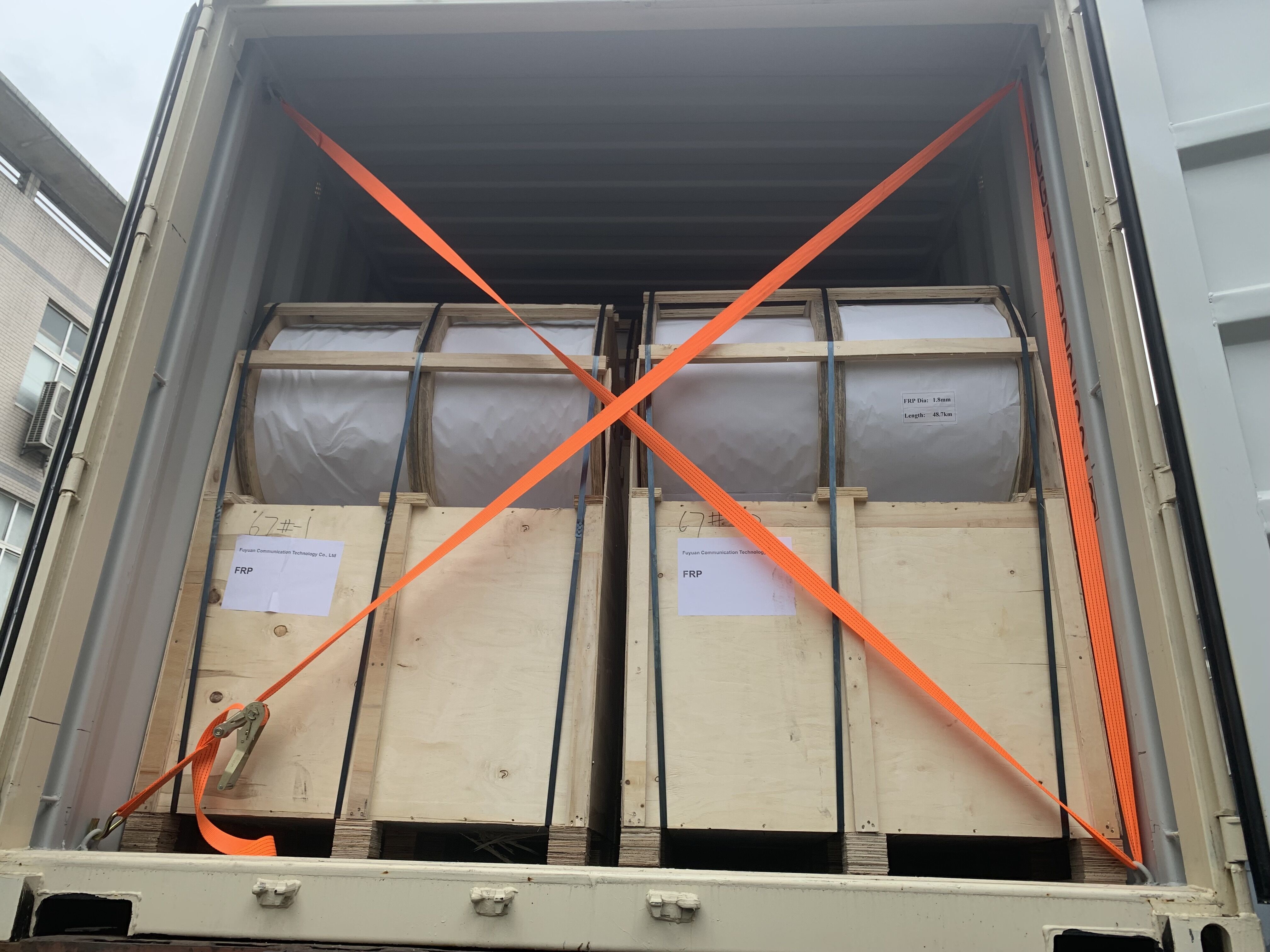

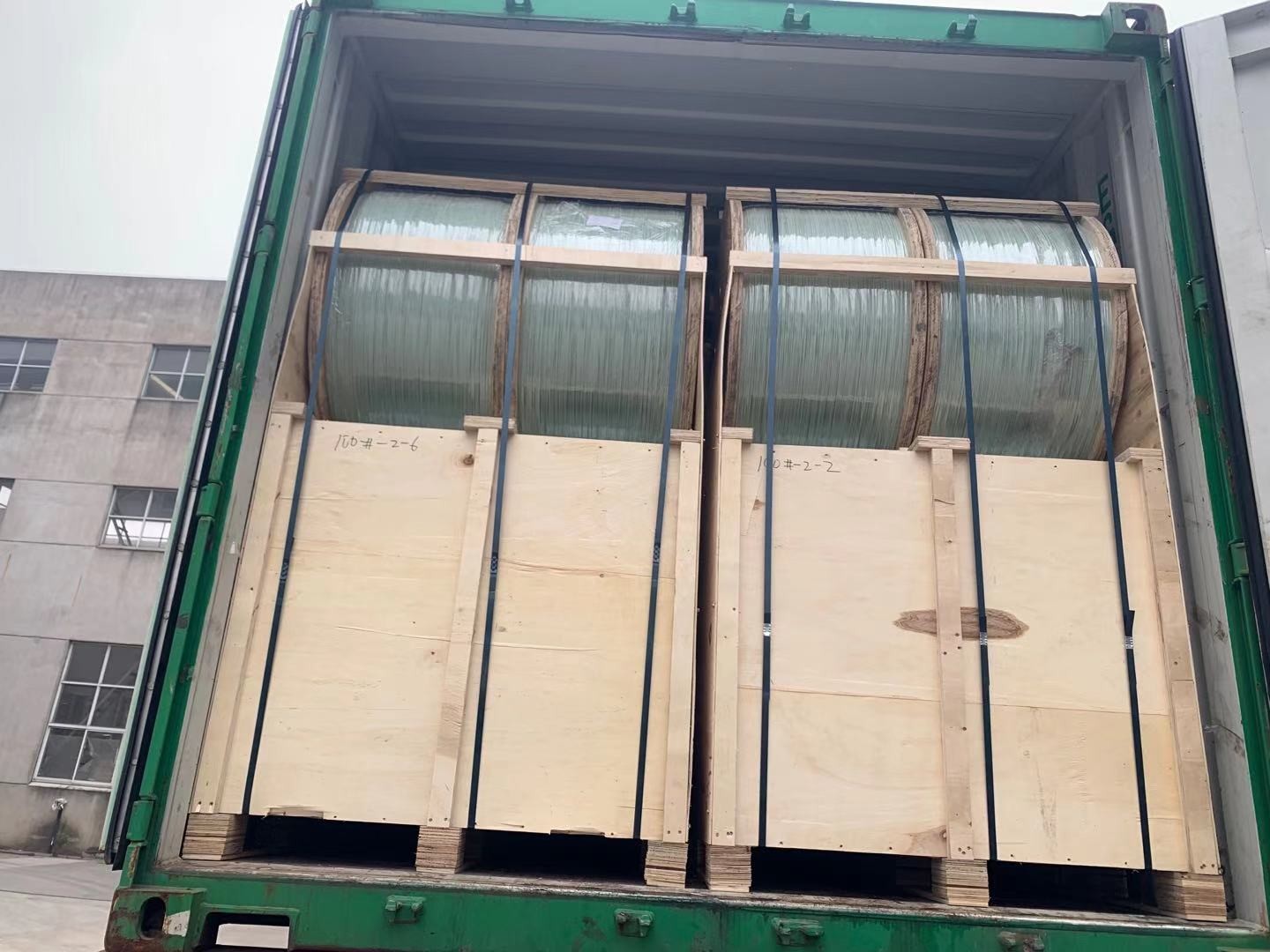

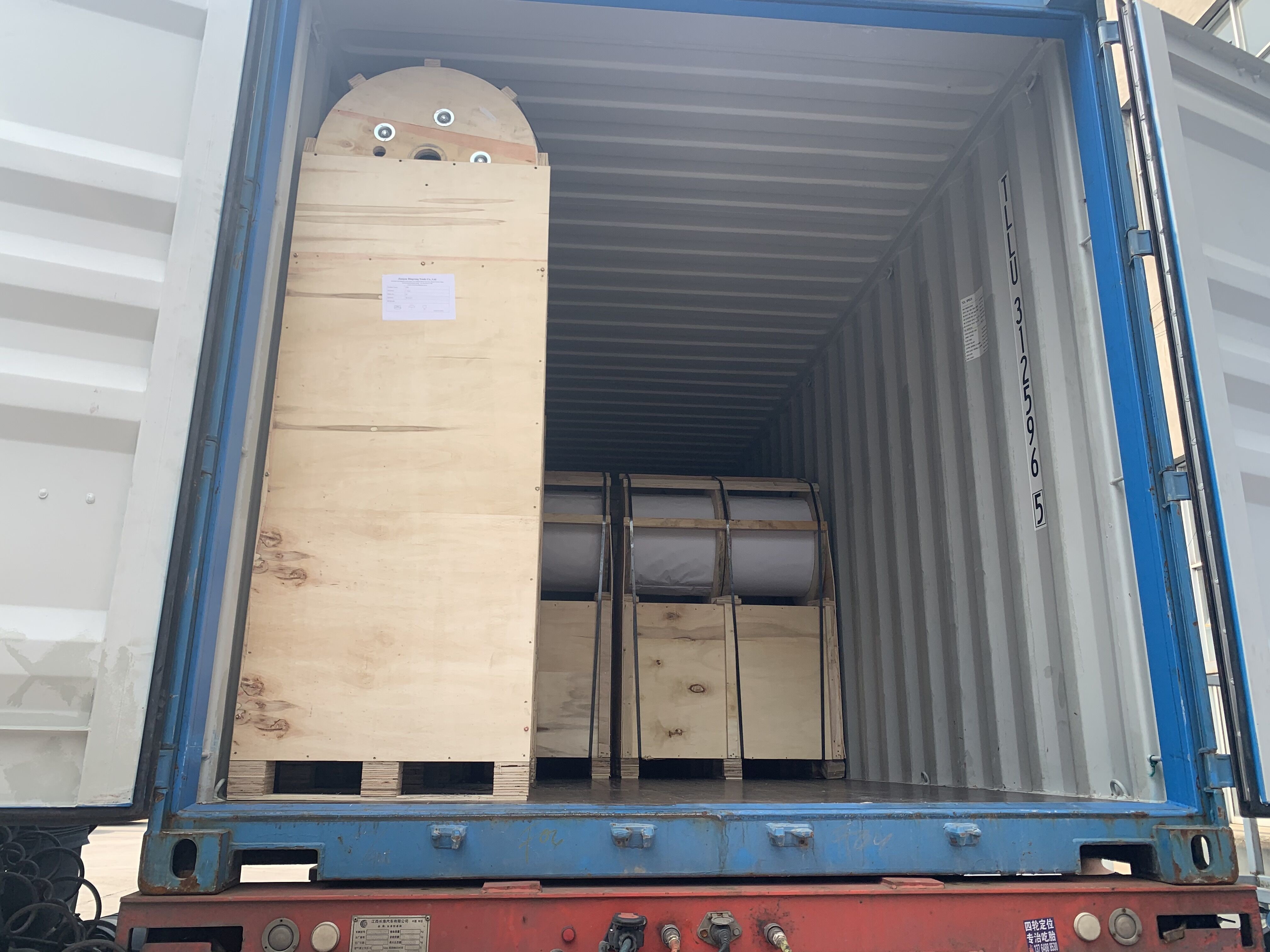

Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 5000Km/Month
Contact Now
Detailed Product Description
Product Name: FRP Strength Material: Glass Fiber Reinforced Plastic
Function: Strengthen Packing: Plywood Reel Or Plastic Reel
Spool Length: 50.4km/reel, 25.2km/reel Or Customized High Temperature Bending Test (100℃, 24h, 30D): No Cracks, No Uneven Spots, Surface Smooth
High Light:

Strength Member FRP Rod

,

1.7mm Member FRP Rod

,

Glass Fiber Reinforced FRP Rod

Central Strength Member (FRP Rod) ​ Φ1.7

Our FRP covers the requirements of Glass Fiber reinforced Plastic Rods, designated “FRP rods” which can be provided with an additional thickening used in Optical cables as central strength member (CSM) located in center of the cable with loose tubes or tight buffered fibers stranded around them

Property Values
Tensile strength (Mpa) ≥1500
Tensile modulus(Gpa) ≥50
Flexural strength(Mpa) ≥1100
Flexural modulus(Gpa) ≥50
Elongation at break (%) ≤4

Coefficient of linear thermal



expansion(-30-80℃)(1/℃)

<8*10-6
Diameter tolerance (mm) ±2%
Minimum bending radius(mm) 40*D
Density (g/cm3) 2.05-2.15
High temperature bending test(50D,100℃,120h)

No bur, crack and



break

Low temperature bending test(50D,-40℃,120h)

No bur, crack and



break

Torsion (±360°/m) Not disintegrated









Product Description

Fiber optical cable with FRP strength member 1/2/4 core single mode ftth drop wire cable



Most of the optical cables are single-core and double-core structures, and can also be made into a four-core structure. The cross-section is an 8-shaped cross-section. The reinforcement is located at the center of the two circles. The metal or non-metallic structure can be used. The optical fiber is located at the geometric center of the 8-shaped geometry. . G.657 small bending radius optical fiber is used for the optical fiber in the sheathed cable, which can be laid with a bending radius of 20mm, which is suitable for entering the house in the building by means of pipes or bum lines.







Product features:

1, Special bending-resistant optical fiber, providing greater bandwidth and enhancing network transmission performance

2, Two parallel FRP or metal reinforcements make the optical cable have good pressure resistance and protect the optical fiber
3, The optical cable has simple structure, light weight and strong practicability
4, Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;
5,Low-smoke halogen-free flame-retardant polyethylene sheath or flame-retardant PVC sheath, environmental protection
6,It can be matched with a variety of on-site connectors and can be completed on-site.


Strength Member FRP Rod For Fiber Optic Cable 1.7mm 0

Strength Member FRP Rod For Fiber Optic Cable 1.7mm 1

Application





1. Used for indoor wiring, directly used by end users;

2. Used for building optical fiber cables;

3. For indoor wiring of users in FTTH.


FAQ

1.About the price?
Re.We usually quote within 12 hours after we confirm the technical data of your products.

2.What's the payment method?
Re.We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.

3.What are your terms of payment?
Re.30% in advance,and 70% before shipment

4.How to ship the items to me?
Re.Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

5.How long is your delivery time?
Re.The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.
