5.00Mm Frp Fiber Fiber Reinforced Plastic Glass Rod Heat Resistant

5.00Mm Frp Fiber Fiber Reinforced Plastic Glass Rod Heat Resistant

  • 5.00Mm Frp Fiber Fiber Reinforced Plastic Glass Rod Heat Resistant
5.00Mm Frp Fiber Fiber Reinforced Plastic Glass Rod Heat Resistant
Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO9001
Model Number: Φ0.4-Φ5.0
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation

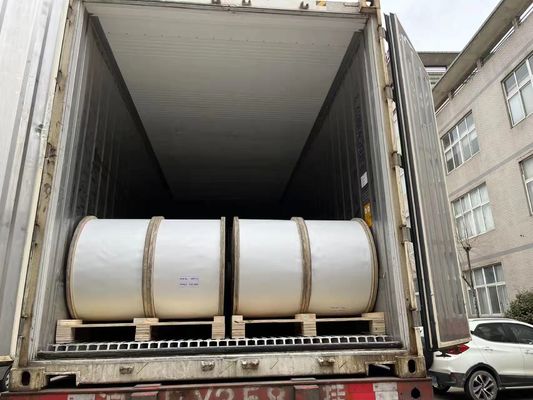

Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 5000Km/month
Contact Now
Detailed Product Description
Material: Fiber Glass And Resin Product Name: FRP/KFRP Strength Member
Function: Strengthen Dimentions: 0.40-5.00 Mm
Spool Length: 50.4km/reel, 25.2km/reel Or Customized Appearance: No Deffets Harmful Use Such As Cracks, Uneven Spots, And Contamination
High Light:

Frp Fiber Glass Rod

,

5.00 Mm frp Glass Rod

,

Heat Resistant Frp Rod

0.40-5.00 Mm Heat Resistant Frp Cheap Fiber Glass Frp Rod​



Technical characteristics:
1. It has the characteristics of light weight and high strength.
2. It has good corrosion resistance and impact resistance. This optical cable is rust proof, tooth biting proof and ant proof.
3. The surface is smooth and the size is more stable.
4. The chemical reaction between metal and other optical cable materials will not affect the optical fiber transmission index.
5. It is not sensitive to electric shock current, and is suitable for multi lightning, multi rain and other climate environment areas; the fiber optic cable with FRP reinforcement core can be installed close to the power line and power supply device, and will not be interfered by the induced current generated by the power line or power supply device



This raw material standard applies to the use of Glass Fiber Reinforced Plastic Rod (FRP ROD) as strength member in Fiber Optic Cables. The Glass Fiber Reinforced Plastic Rod or the Strength Member serves dual purpose. Its tensile strength provides the cable protection during installation and its rigidity prevents cable buckling during the life of the cable. Glass Fiber Reinforced Plastic Rods combine the high-performance properties of glass reinforcements with unique resin formulation to produce a strong and cost effective cable strength member. The consistent diameter and long, splice free lengths enhance productivity in cabling operations.



Item
Unit
Result
Density
g/cm3
2.05~2.15
Tensile strength
Mpa
≥1100
Tensile modulus of elasticity
Gpa
≥50
Elongation at break
%
≤4
Coefficient of linear expansion(23-80)
10-6k-1
6 - 7
Water absorption Rate
%
≤0.1
Diameter tolerance
QIZFM01
±2%
Minimum bending radius
QIZFM01
40 × D
