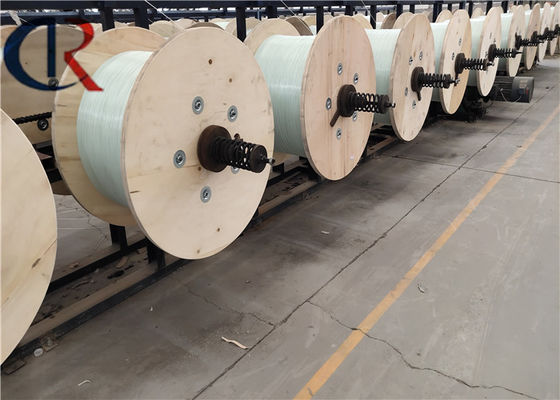

Fiber Optic Cables FRP Core Insensitive To Electric Shock Spool 50.4km/Reel

Fiber Optic Cables FRP Core Insensitive To Electric Shock Spool 50.4km/Reel

  • Fiber Optic Cables FRP Core Insensitive To Electric Shock Spool 50.4km/Reel
Fiber Optic Cables FRP Core Insensitive To Electric Shock Spool 50.4km/Reel
Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO-9001
Model Number: Φ0.4-Φ5.0
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 5000Km/month
Contact Now
Detailed Product Description
Material: FRP Core Product Name: FRP/KFRP Strength Member
Packing: Plywood Reel Or Plastic Reel Function: Strengthen
Diameter: 0.4mm-5.0mm Spool Length: 50.4km/reel, 25.2km/reel Or Customized
Tensile Modulus: ≥50 Gpa
High Light:

kfrp material

,

frp strength member

FRP Rod Strength Member for Fiber Optic Cables



FRP Rod Strength Member for Fiber Optic Cables

Strength member for fiber optic cables, usually located at the center of fiber optic cables, is one important component of fiber optic cables by supporting optic fiber bundle and enhancing cables tensile strength.

FRP Rod / FRP strength member is made by thermal pultrusion technique which combines complex resin as body material with glass fiber as reinforcement at a certain ratio. Without drawbacks of traditional metallic strength member, FRP rod features excellent anti-corrosion, electromagnetic interference free, high tensile strength, low weight, saving energy and environmentally friendly, which are now widely used in various optical fiber cables.

Application
Central strength member for fiber optical Outdoor Cables, Indoor Cables, ADSS Cables, FTTx Cables, etc.

FRP Rod Features
1) High tensile strength, high modulus, low heat conductivity, low stretch, low expansion, wide range of temperature settings.
2) Insensitive to electric shock, suitable for the area with frequent lightning and raining.
3) Free from chemical corrosion. Compared with metal wire, FRP rod eliminates harmful gas, which can negatively affect cables transmission quality, born chemically by metal and filling gel.
4) Compared with metal wire, FRP rod is of high strength, low weight, excellent insulation and immune to electromagnetic interference.
5) Optical fiber cables with FRP rod are available to be installed tight close to power wire and power units, perfectly insulated, free from induction current interference. The transmission efficiency can be improved accordingly.
6) Smooth surface, stable sizes, easy processing and installation contribute to wide range of FRP strength member application.

FRP Rod Specification

Diameter range (Φ 0.40 ~ 5.00mm with very close diameter tolerance)
Normal Diameter Φ (mm)

0.40 0.45 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.25
1.30 1.40 1.50 1.60 1.65 1.70 1.80 2.00 2.10 2.20 2.30
2.40 2.50 2.60 2.70 2.80 3.00 3.20 3.50 4.00 4.50 5.00

Normal Length
Diameter (Φ 0.40 ~ 3.00mm) Standard Delivery Length ≥25km splice free
Length measurement and marking by METER

Diameter ( ≥ Φ 3.20mm) Standard Delivery Length ≥15km splice free
Length measurement and marking by METER

Note: Diameter or length of non-standard sizes can be customized.

Technical Parameter

FRP Rod Test Item Unit (or Condition) Technical Parameter
Appearance   Uniform color, smooth surface, no bur, no crack
Tensile Strength MPa ≥1100
Elastic Tensile Modulus GPa ≥50
Bending Strength MPa ≥1100
Flexural Modulus GPa ≥50
Elongation at Break % ≤4%
Coefficient of Linear Expansion 1/°C (-30°C ~ +80°C) ≤8×10-6
Diameter Tolerance % ±2%
Specific Gravity g/cm3 2.05~2.15
Minimum Bending Radius mm (28°C ± 5°C) 40D
High Temperature Bending Performance (50D, 100°C, 120h) No bur, no crack, no break, smooth surface, back to original straight
Low Temperature Bending Performance (50D, -40°C, 120h) No bur, no crack, no break, smooth surface, back to original straight

Storage

1) Cable reels can only stand upright. Lying flat or piling up are prohibited.
2) Cable reels long distance rolling is prohibited.
3) Keep away from heavy impact, squeezing or any mechanical damage.
4) Keep away from moisture, long time sun exposure or rain.
5) Storage and transportation temperature: - 40°C ~ + 60°C
