| Place of Origin: | China |
| Brand Name: | Dingrong |
| Certification: | ISO9001 |
| Model Number: | Φ0.4-Φ5.0 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |

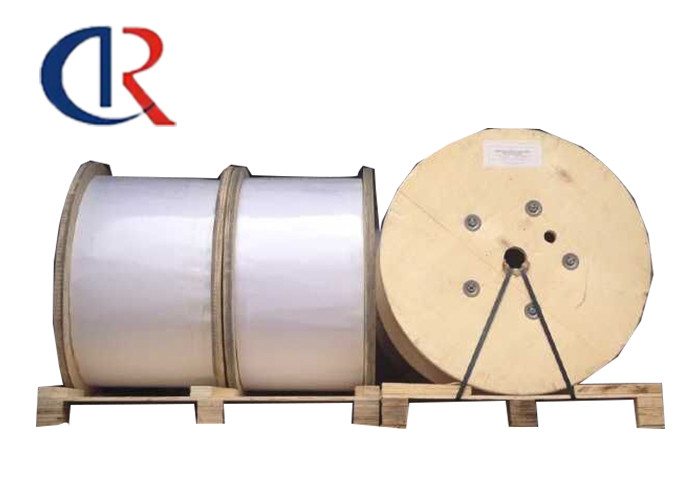

| Packaging Details: | Plywood reel or plastic reel |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000Km/Month |
| Product Name: | Strengthen Core | Material: | FRP |
|---|---|---|---|
| Function: | Strengthen | Packing: | Plywood Reel Or Plastic Reel |
| Spool Length: | 50.4km/reel, 25.2km/reel Or Customized | High Temperature Bending Test (100℃, 24h, 30D): | No Cracks, No Uneven Spots, Surface Smooth |
| High Light: | frp strength member,frp strength |
||
Cable Strengthen Core for Fiber Optical Cables (FRP Strength member) Φ0.4
FRP is a common reinforcement to provide strength and durability in fiber optic drop cable.
1. Specification: 0.4mm-5.0mm (Diameter)
2. Features:
1) High tensile and light weight
2) Electromagnetic interference free
3) Anti-corrosion
4) Environmentally friendly
5) Bullet-proof, ant-proof and anti-tooth proof
3. Application: It is widely used as the central strengthen core for the various fiber optical cables
Specification Of FRP
| Property | Value |
| Appearance | No deffets harmful use such as cracks, uneven spots, and contamination |
| Tensile strength | ≥1100 Mpa |
| Tensile modulus | ≥50 Gpa |
| Flexural strength | ≥1100 Mpa |
| Flexural modulus | ≥50 Gpa |
| Elongation at break | ≤4 % |
| Diameter tolerance | ±2% mm |
| Minimum bending radius | 40*D mm |
| Density (g/cm3) | 2.05-2.15 |
| High temperature bending test (50D,100℃,120h) | No bur, crack and break |
| Low temperature bending test (50D,-40℃,120h) | No bur, crack and break |
Characteristics:
1.Two parallel steel wire/FRP strength members ensure good performance of crush resistance to protect fiber.
2. Simple structure, light weight and high practicability;
3. Easily strip and splice, simplify the installation and maintenance;
4. Low smoke, zero halogen and flame retardant sheath.
