CSM FRP Member Non Metallic , FRP Reinforcement Rod Φ0.4 - Φ5.0 Strength Stiffness
Product Details
frp strength member
,frp strength

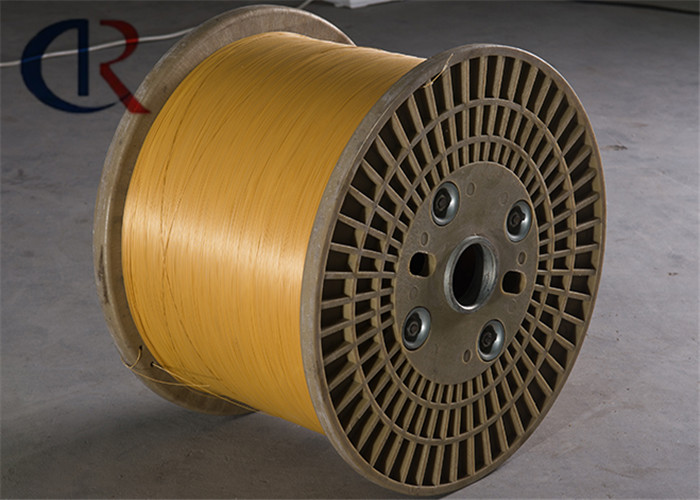

Non-Metallic FRP Strength Member CSM/FRP rod Φ0.4-Φ5.0
FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight. FRP won’t corrode, rot, warp, attract insects, or rust, making it an ideal and long-lasting replacement for steel, wood and aluminum in a wide range of applications.
Because FRP is a composite material made up of fiberglass reinforcements and polymer resins, FRP can also stand for Fiberglass-Reinforced Polymer. The glass fiber provides the strength and stiffness, and the resin provides shape and protects the fibers.
FRP is a common reinforcement to provide strength and durability in fiber optic drop cable.
1. Specification: 0.4mm-5.0mm (Diameter)
2. Features:
1) High tensile and light weight
2) Electromagnetic interference free
3) Anti-corrosion
4) Environmentally friendly
5) Bullet-proof, ant-proof and anti-tooth proof
3. Application: It is widely used as the central strengthen core for the various fiber optical cables
Specification Of FRP
| Property | Value |
| Appearance | No deffets harmful use such as cracks, uneven spots, and contamination |
| Tensile strength | ≥1100 Mpa |
| Tensile modulus | ≥50 Gpa |
| Flexural strength | ≥1100 Mpa |
| Flexural modulus | ≥50 Gpa |
| Elongation at break | ≤4 % |
| Diameter tolerance | ±2% mm |
| Minimum bending radius | 40*D mm |
| Density (g/cm3) | 2.05-2.15 |
| High temperature bending test (50D,100℃,120h) | No bur, crack and break |
| Low temperature bending test (50D,-40℃,120h) | No bur, crack and break |
FRP Structural Reinforcement Member High-performance fiberglass reinforced polymer member designed to deliver exceptional strength and durability for construction applications. Engineered with advanced composite technology to enhance structural integrity while maintaining manageable weight. Height: 50 mm Weight: 85 kg Density: 1.8 G/cm³ Minimum Bending Radius: 40D mm Key Features & Benefits Superior Corrosion Resistance Unlike traditional steel reinforcement, this FRP member
High Corrosion Resistance FRP Member This high-performance Fiberglass Reinforced Plastic (FRP) Member is engineered for demanding construction and industrial applications. Combining exceptional strength, durability, and lightweight design, this FRP Composite Sheet delivers reliable performance as a structural component. Key Features Exceptional weight-to-strength ratio at only 8.5 kg 6-meter length for fewer joints and enhanced structural integrity Superior corrosion and
FRP Member System - Minimum Bending Radius 40Dmm The Fiberglass Reinforced Polymer (FRP) Member is an advanced composite material engineered for superior strength, durability, and versatility in demanding construction and engineering applications. Combining fiberglass reinforcement with a high-performance plastic matrix, this member delivers exceptional mechanical properties and resistance to harsh environmental conditions. Key Advantages Exceptional corrosion resistance for
85 Kg FRP Member for Industrial Structural Applications This high-performance Fiber Reinforced Plastic (FRP) member is engineered for demanding structural applications across construction, automotive, marine, and aerospace industries. Combining exceptional strength with lightweight composite materials, it delivers superior mechanical properties and long-lasting performance. Minimum Bending Radius: 40Dmm Height: 50 mm Weight: 85 Kg Density: 1.8 g/cm³ Standard Length: 6 meters
