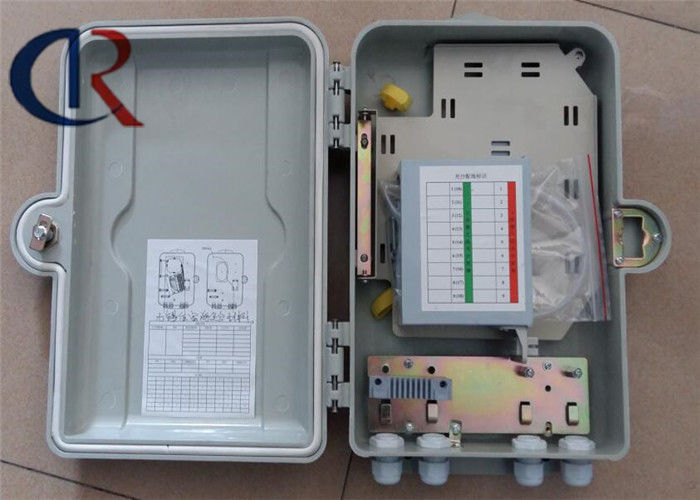

FTTH Fiber Optic Distribution Box Outdoor Wall Mounted Waterproof Free Paint Appearance

FTTH Fiber Optic Distribution Box Outdoor Wall Mounted Waterproof Free Paint Appearance
FTTH Fiber Optic Distribution Box Outdoor Wall Mounted Waterproof Free Paint Appearance

Large Image :  FTTH Fiber Optic Distribution Box Outdoor Wall Mounted Waterproof Free Paint Appearance

Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO9000
Model Number: 16A,16B
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Papper Box
Delivery Time: 10days
Payment Terms: L/C, T/T
Supply Ability: 5000/month
Detailed Product Description
Materia: MSC Working Temperature: -40 ℃ + 60 ℃
Humidity: ≤95% (+ 40 ℃) Atmospheric Pressure: 70-106KPA
Door Opening Angle: ≥180 Insulation Resistance: ≥2 × 10MΩ× 500V
High Light:

optical fiber distribution box

,

outdoor cable distribution box

Fiber optic distribution box & 16 core fiber optic patch panel cross connect cabinet box





Features and Structure Description

2.1 Case material fiberglass (SMC) material, free paint appearance, good gloss. The service life of more than 20 years

2.2 Two-tier structure design, optical splitter upper wiring layer and the lower layer of fiber splicing.

2.3 Optical splitter module drawer modular design, with strong interchangeability and versatility.



The main technical parameters (in line with YD, T988-2007 communication cable transfer box on request)

3.1 Working temperature: -40 ℃ + 60 ℃

3.2 Humidity: ≤95% (+ 40 ℃)

3.3 Atmospheric pressure: 70kPa ~ 106kPa

3.4 cable into the Number: 1 x 2 root (lower feed cable)

3.5 leather fibers enter the number: 8 x2 root (lower feed fiber)

3.6 Door opening angle: ≥180

3.7 Ground level discharge withstand voltage: ≥3000V (DC) / 10mA / 1min

3.8 Insulation resistance: ≥2 × 10MΩ× 500V

3.9 Dimensions: 400mm x 300mm x120mm

3.10 Weight: 5500g



Installation and Precautions:

4.1 Wall-mounted:

4.1.1 Installed on the wall (or under the cabinet in kind) of the size of three plastic expansion screw positions are marked;
