Wuxi Dingrong Composite Material Technology Co. Ltd
We grow with you！
 |
| Place of Origin: | China |
| Brand Name: | Dingrong |
| Certification: | ISO9000 |
| Model Number: | Φ0.4-Φ0.5 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood reel or plastic reel |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000km/month |
| Product Name: | KFRP Stength Memeber For Fiber Cable | Material: | FRP |
|---|---|---|---|
| Function: | Aramid Reinforced Plastic | Packing: | Plywood Reel Or Plastic Reel |
| Diameter: | 0.4mm-5.0mm | Spool Length: | 50.4km/reel, 25.2km/reel Or Customized |
| Tensile Strength: | ≥1700 Mpa | ||
| Highlight: | aramid frp,aramid reinforced plastic |
||

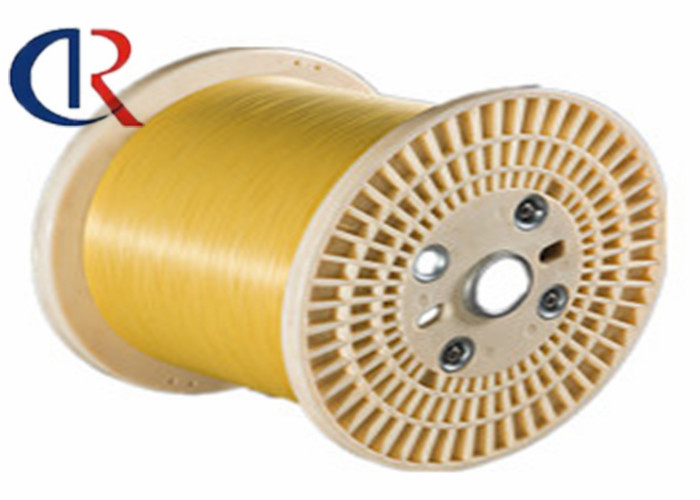

KFRP/AFRP{ fiber strength material/Aramid FRP (KFRP or AFRP) central member
KFRP Rod Strength Member is a new type of high performance non-metallic composite material. It is made by thermal pultrusion technique which combines complex resin as body material with aramid fiber as strength member at certain ratio. It has been widely employed in the internet access network and it works particularly well with the indoor fiber optical cable network.
|
Description
|
KFRP Rod Strength Member for Fiber Cable Reinforcement
|
|
Brand
|
GFH or OEM
|
|
Place of Origin
|
Wuxi, China (Mainland)
|
|
Material
|
Aramid and Resin
|
|
Color
|
Yellow
|
|
Diameter Range
|
0.40 mm-0.58 mm
|
|
MOQ5
|
00 Kilometers
|
|
Delivery Length
|
50km/reel, 25km/reel, or customized
|
|
Packing Details
|
50km ARP rod in one reel, 25km ARP rod in one reel,
wooden reel or plastic reel available
|
|
Lead Time
|
3 days for the stock FRP;
15-30 days after receipt of prepayment for the new order
|
KFRP/Aramid Rod Features :
1. Light weight and high strength, both the strength and modulus of ARP are better than that of steel and fiberglass strength member.
2. Low expansion, ARP covers a wide range of temperatures; the linear expansion coefficient is less than that of steel and fiberglass strength member;
3. Impact resistance, resistance to fracture, Our ARP reaches not only ultra-high tensile strength (≥1600Mpa), even in case of breakage it can still maintain a tensile strength of about 1300Mpa ;
4. Good flexibility, the light and soft texture allows it to bend easily; the minimum bending diameter is only 24 times of the diameter of the rod;
5. Indoor fiber optic cable with compact structure, excellent bending properties, especially suitable for complex wiring indoor environment.
Contact Person: Ms. Zhu
Tel: 13812158121
Fax: 86-510-82717368
