KFRP Aramid Fiber Reinforced Plastic Strength Member Reinforcedment Flexible Easy Bent
Product Details
aramid frp
,aramid reinforced plastic

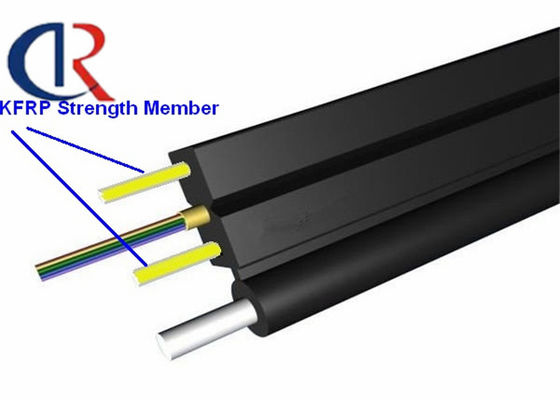

KFRP strength member KFRP rod, KFRP strength member, KFRP reinforced core.
Product Features
Light weight and high strength: KFRP has the characteristics of low density and high strength. Its ratio of strength and modulus are higher than those of steel wire and GFRP.
Low expansion
KFRP has a lower coefficient of thermal expansion than steel wire and GFRP in a wide range of temperature;
Impact and break resistance: KFRP has much higher tensile strength (≥1600Mpa).
Even it is broken, the remained tensile strength could be 1300Mpa.
Good flexibility
KFRP is flexible and easy to be bent. Its minimum bending diameter is 24 times of the diameter of KFRP rod.
Good aesthetic and flexible, especially for the indoor layout.
Aramid FRP (KFRP or AFRP) central member/KFRP strength material Product Description Aramid FRP (KFRP or AFRP) central member is a new kind of non-metallic strength member for fiber optic cables. Specification Of KFRP Property Index Appearance No deffets harmful use such as cracks, uneven spots, and contamination Non-circularity for KFRP ≤5% Tensile strength ≥1700 Mpa Tensile modulus ≥50 Gpa Elongation at break ≤3 % Minimum bending radius 10*D mm Line density (g/m) 0.34±0.05
KFRP (KFRP or AFRP) central member/KFRP strength material/Aramid FRP strenght member. Product Description Aramid FRP (KFRP or AFRP) central member is a new kind of non-metallic strength member for fiber optic cables. Specification Of KFRP Property Index Appearance No deffets harmful use such as cracks, uneven spots, and contamination Non-circularity for KFRP ≤5% Tensile strength ≥1700 Mpa Tensile modulus ≥50 Gpa Elongation at break ≤3 % Minimum bending radius 10*D mm Line
Aramid FRP (KFRP or AFRP) central member/KFRP strength material Product Description Aramid FRP (KFRP or AFRP) central member is a new kind of non-metallic strength member for fiber optic cables. Specification Of KFRP Property Index Appearance No deffets harmful use such as cracks, uneven spots, and contamination Non-circularity for KFRP ≤5% Tensile strength ≥1700 Mpa Tensile modulus ≥50 Gpa Elongation at break ≤3 % Minimum bending radius 10*D mm Line density (g/m) 0.34±0.05
