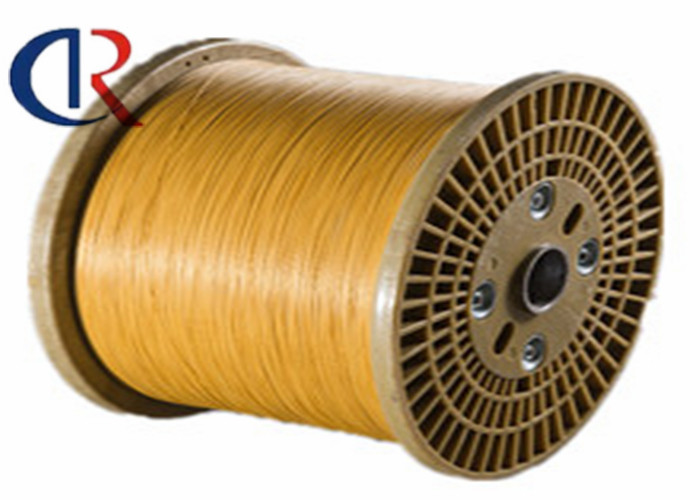

Natural Color FRP Rod , KFRP Core Kevlar Fiber Epoxy Reinforced Plastic Indoor Cable Layout
Product Details
aramid frp
,aramid reinforced plastic
AFRP/KFRP strength member KFRP rod, KFRP strength member, KFRP reinforced core.
Aramid FRP (KFRP or AFRP) is a new kind of non-metallic strength member for fiber optic cables.
FEATURES:
1) Light weight and high strength. KFRP has low density and high strength. its ratio of strength/weight and ratio of modulus/weight are higher than those of steel wire and GFRP;
2) Impact and break resistance. KFRP has much higher tensile strength(≥1700MPa),so it has much more impact and break reststance.

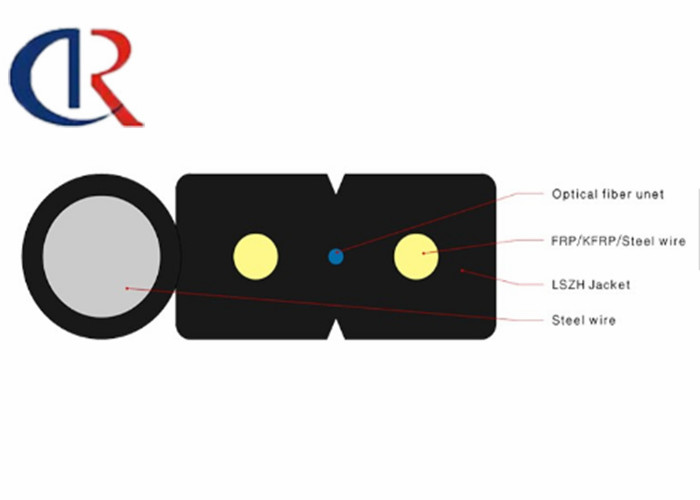

3) KFRP has excellent flexible and compact properties, so that it is special for the indoor cable layout.
Specification for KFRP:
| Property | Index |
| Appearance | No defects harmful use such as cracks,uneven spots,and contamination |
| Color | Natural |
| Outer Diameter of KFRP with coating(mm) | D±0.05 |
| Non-circularity KFRP with coating(%) | ≤5 |
| Density(g/cm3) | 1.3~1.4 |
| Tensile Strength(Mpa) | ≥1700 |
| Tensile Elastic Modulus(Gpa) | ≥50 |
| Elongation at break(%) | ≤3.0 |
| Minimum Bending Diameter(bending diameter is 20times of the diameter of KFRP rod) | No bur, crack and break |
| High temperature Bending Test(100°C,24h,bending diameter is 60 times of the diameter of KFRP rod) | No bur, crack and break |
| Low temperature Bending Test(-40°C,24h,bending diameter is 60 times of the diameter of KFRP rod) | No bur, crack and break |
Aramid FRP (KFRP or AFRP) central member/KFRP strength material Product Description Aramid FRP (KFRP or AFRP) central member is a new kind of non-metallic strength member for fiber optic cables. Specification Of KFRP Property Index Appearance No deffets harmful use such as cracks, uneven spots, and contamination Non-circularity for KFRP ≤5% Tensile strength ≥1700 Mpa Tensile modulus ≥50 Gpa Elongation at break ≤3 % Minimum bending radius 10*D mm Line density (g/m) 0.34±0.05
KFRP (KFRP or AFRP) central member/KFRP strength material/Aramid FRP strenght member. Product Description Aramid FRP (KFRP or AFRP) central member is a new kind of non-metallic strength member for fiber optic cables. Specification Of KFRP Property Index Appearance No deffets harmful use such as cracks, uneven spots, and contamination Non-circularity for KFRP ≤5% Tensile strength ≥1700 Mpa Tensile modulus ≥50 Gpa Elongation at break ≤3 % Minimum bending radius 10*D mm Line
Aramid FRP (KFRP or AFRP) central member/KFRP strength material Product Description Aramid FRP (KFRP or AFRP) central member is a new kind of non-metallic strength member for fiber optic cables. Specification Of KFRP Property Index Appearance No deffets harmful use such as cracks, uneven spots, and contamination Non-circularity for KFRP ≤5% Tensile strength ≥1700 Mpa Tensile modulus ≥50 Gpa Elongation at break ≤3 % Minimum bending radius 10*D mm Line density (g/m) 0.34±0.05
Our mission is to offer "High Quality" & "Good Service" & "Fast Delivery" to help our clients to gain more profits.
