​Non Metallic FRP Member Color Molded Galvanizing No Painting

​Non Metallic FRP Member Color Molded Galvanizing No Painting

  • ​Non Metallic FRP Member Color Molded Galvanizing No Painting
​Non Metallic FRP Member Color Molded Galvanizing No Painting
Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO9001
Model Number: Φ0.4-Φ5.0
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation

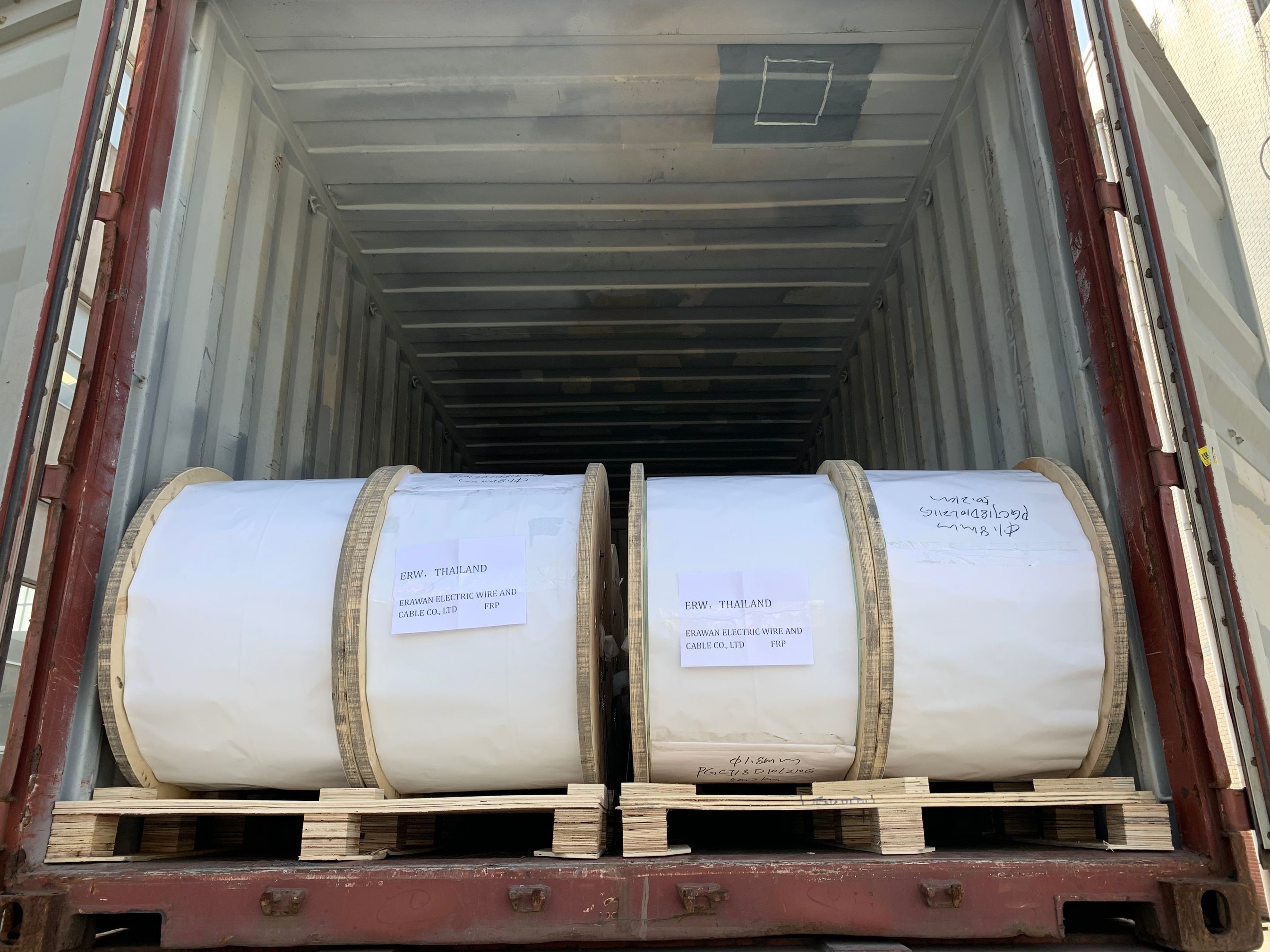

Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 5000Km/Month
Contact Now
Detailed Product Description
Product Name: Strength Member Fiber Optic Cable Supply Material: FRP Material
Function: Strengthen Packing: Plywood Reel Or Plastic Reel
Spool Length: 50.4km/reel, 25.2km/reel Or Customized High Temperature Bending Test (100℃, 24h, 30D): No Cracks, No Uneven Spots, Surface Smooth
Highlight:

​Non Metallic FRP Member

,

Color Molded FRP Member

,

Galvanizing No Painting FRP Member

​Non-Metallic FRP Strength Member CSM/FRP rod Φ0.4-Φ5.0



FRP Central Strength Member, Insulation Rods are widely used all over the world in most types of optical fiber telecommunication and data cables. The up-to-date pultrusion technology is adopted for making FRP products, so the products have excellent properties.





compare FRP with Steel as a strength reinforcement in fiber optic cable:



1 Insensitive to the lightning strike, suitable for the area with frequent lightning and rain.
2 Free from the induction interference, can be laid and installed close to the power line and device.
3 No harmful gas, which will affect the transmission of the optical fiber, will be given off from the corrosive metal.
4 FRP Strength Member has a high ratio of strength/weight.





Parameter FRP Composites Steel
Corrosion, rot and
and insect resistance
Resists a broad range of
chemicals and is unaffected by
moisture or immersion in water.
Resists insect damage. Painting
is only suggested when exposed to
UV rays/direct sunlight.
Subject to oxidation and
corrosion. Requires painting
or galvanizing for many
applications.
Strength Has greater flexural strength
and pound-for-pound
is often stronger than steel
and aluminum in the lengthwise
direction.
Homogeneous material
Weight Weighs 75% less than steel
and 30% less than aluminum
Could require lifting
equipment to move and place
Electrical conductivity Nonconductive
High dielectric capability
Conducts electricity
Grounding potential
Thermal properties Good insulator with low thermal
conductivity
Conducts heat
Stiffness Will not permanently
deform under working load.
Modulus of elasticity:
2.8 x 106 psi
Modulus of elasticity:
29 x 106 psi
Impact resistance Will not permanently deform
under impact. Glass mat in
pultruded parts distributes impact
load to prevent surface damage,
even in subzero temperatures.
Can permanently deform
under impact
Color Color is molded within
No painting required
Must be painted for color,
may require repainting
over time
Cost Lower installation costs, less
maintenance and longer product
life allow for a lower lifecycle
cost.
Lower initial material cost
More expensive to maintain
Much higher over time



FRP cable reinforcement core (Fiber Glass Rod) is a new type of high-performance engineering composite material prepared by pultrusion process with resin as the matrix material and glass fiber as the reinforcing material. GFRP non-metallic cable reinforcement overcomes the defects of traditional metal cable reinforcements, has excellent corrosion resistance, lightning resistance, electromagnetic field interference resistance, high tensile strength, light weight, environmental protection, energy saving, etc., and is widely used in a variety of fiber optic cable
