ISO Qualified Fiber Reinforced Plastic FRP Rods For Fiber Optic Cables

ISO Qualified Fiber Reinforced Plastic FRP Rods For Fiber Optic Cables

  • ISO Qualified Fiber Reinforced Plastic FRP Rods For Fiber Optic Cables
ISO Qualified Fiber Reinforced Plastic FRP Rods For Fiber Optic Cables
Product Details:
Place of Origin: Jiangsu China
Brand Name: Dingrong
Certification: ISO-9001
Model Number: Φ0.4-Φ5.0
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation

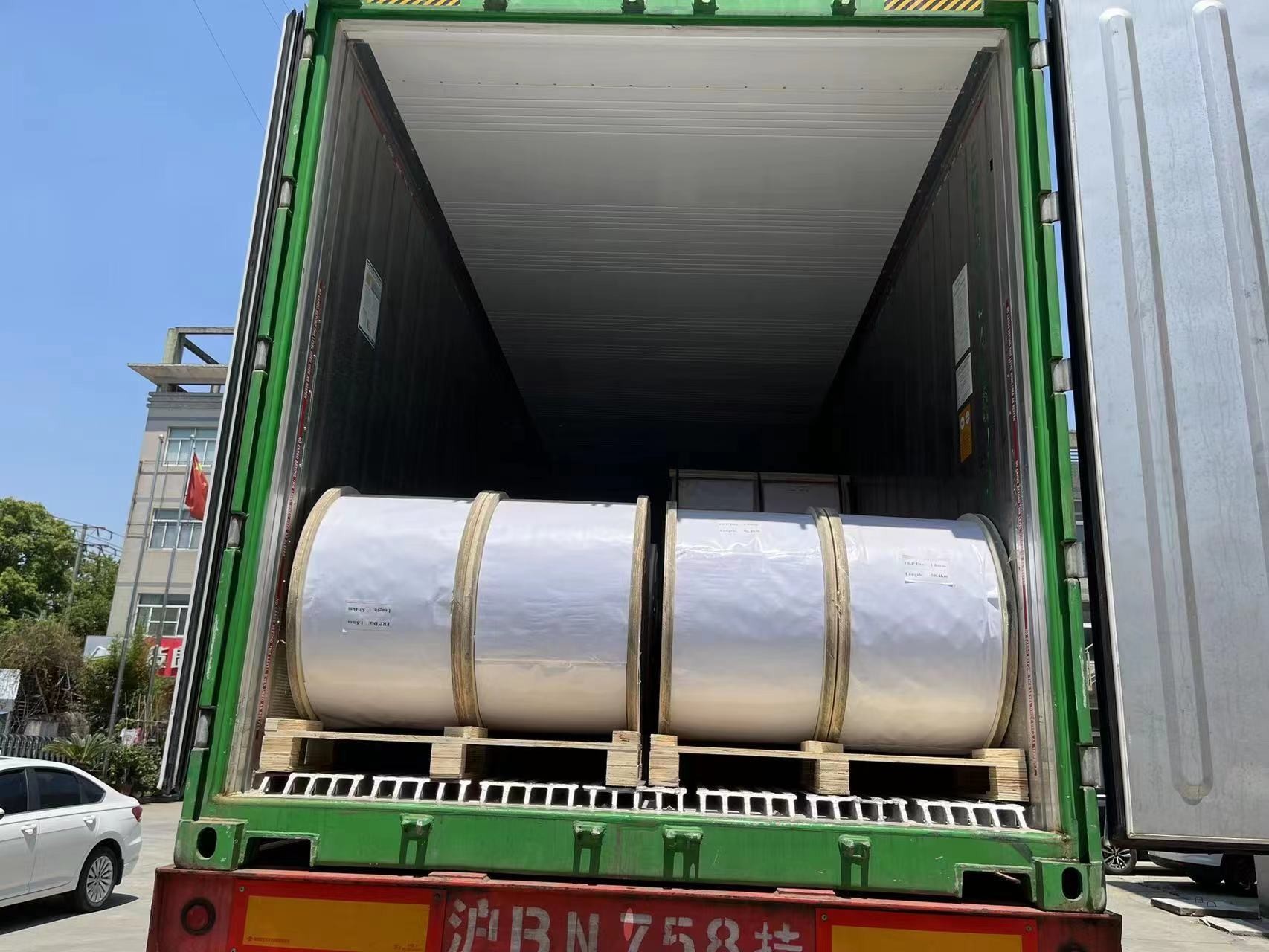

Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 5000Km/month
Contact Now
Detailed Product Description
Product Name: FRP Strength Member For Fiber Cable Material: FRP
Function: Strengthen Packing: Plywood Reel Or Plastic Reel
Diameter: 0.4mm-5.0mm Spool Length: 50.4km/reel, 25.2km/reel Or Customized
Appearance: Φ1.8 KFRP FRP Reinforcing Rod Cable Plastic Central Peripheral Strengthing

ISO Qualified Fiber Reinforced Plastic FRP Rods For Fiber Optic Cables​



Beneficial characteristics of FRP reinforcing include:

  • It is highly resistant to chloride ion and chemical attack
  • Its tensile strength is greater than that of steel yet it weighs only one quarter as much
  • It is transparent to magnetic fields and radar frequencies
  • GFRP and BFRP have has low electrical and thermal conductivity

Technical characteristics:
1. It has the characteristics of light weight and high strength.
2. It has good corrosion resistance and impact resistance. This optical cable is rust proof, tooth biting proof and ant proof.
3. The surface is smooth and the size is more stable.
4. The chemical reaction between metal and other optical cable materials will not affect the optical fiber transmission index.
5. It is not sensitive to electric shock current, and is suitable for multi lightning, multi rain and other climate environment areas; the fiber optic cable with FRP reinforcement core can be installed close to the power line and power supply device, and will not be interfered by the induced current generated by the power line or power supply device.



Product Name Fiber Reinforced Plastic FRP Rod /Plastic Rod Place of Origin Jiangsu, China
Diameter Range Φ 0.40 mm ~ Φ 5.00 mm Factory or Not Factory
Application Central or peripheral strength member for fiber optical cables Brand Name Dingrong
Material Fiber glass and resin Technique Pultrusion
Standard ISO Certification ISO9001
Delivery Length 50.4km/reel, 25.2km/reel or customized Packing Plywood reel or plastic reel





Parameter FRP Composites Steel
Corrosion, rot and
and insect resistance
Resists a broad range of
chemicals and is unaffected by
moisture or immersion in water.
Resists insect damage. Painting
is only suggested when exposed to
UV rays/direct sunlight.
Subject to oxidation and
corrosion. Requires painting
or galvanizing for many
applications.
Strength Has greater flexural strength
and pound-for-pound
is often stronger than steel
and aluminum in the lengthwise
direction.
Homogeneous material
Weight Weighs 75% less than steel
and 30% less than aluminum
Could require lifting
equipment to move and place
Electrical conductivity Nonconductive
High dielectric capability
Conducts electricity
Grounding potential
Thermal properties Good insulator with low thermal
conductivity
Conducts heat
Stiffness Will not permanently
deform under working load.
Modulus of elasticity:
2.8 x 106 psi
Modulus of elasticity:
29 x 106 psi
Impact resistance Will not permanently deform
under impact. Glass mat in
pultruded parts distributes impact
load to prevent surface damage,
even in subzero temperatures.
Can permanently deform
under impact
Color Color is molded within
No painting required
Must be painted for color,
may require repainting
over time
Cost Lower installation costs, less
maintenance and longer product
life allow for a lower lifecycle
cost.
Lower initial material cost
More expensive to maintain
Much higher over time
