Composite Sheet FRP Rod Strength Member Di Electric Composite For FOC

Composite Sheet FRP Rod Strength Member Di Electric Composite For FOC

  • Composite Sheet FRP Rod Strength Member Di Electric Composite For FOC
Composite Sheet FRP Rod Strength Member Di Electric Composite For FOC
Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO9001
Model Number: Φ0.4-Φ5.0
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation

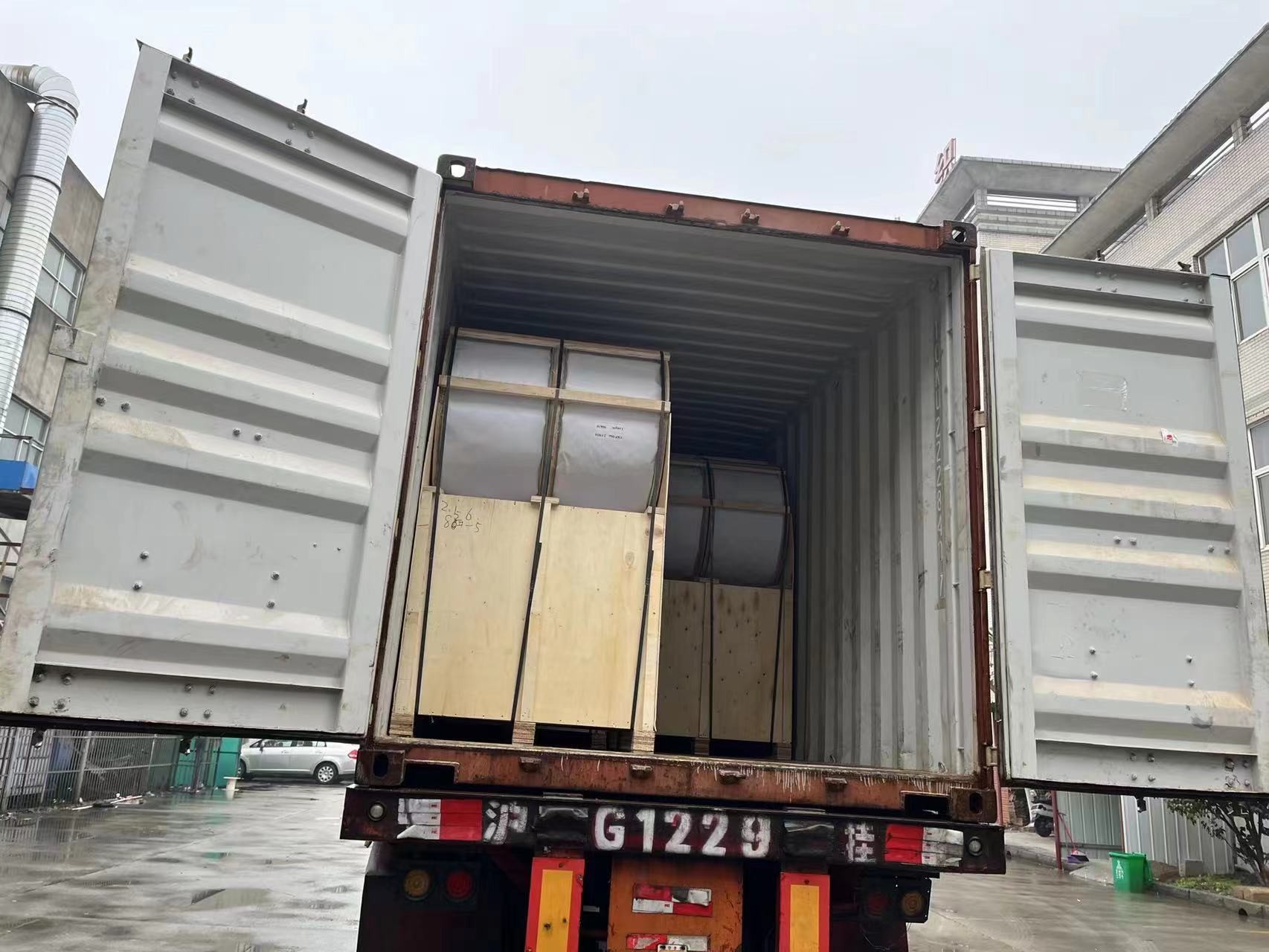

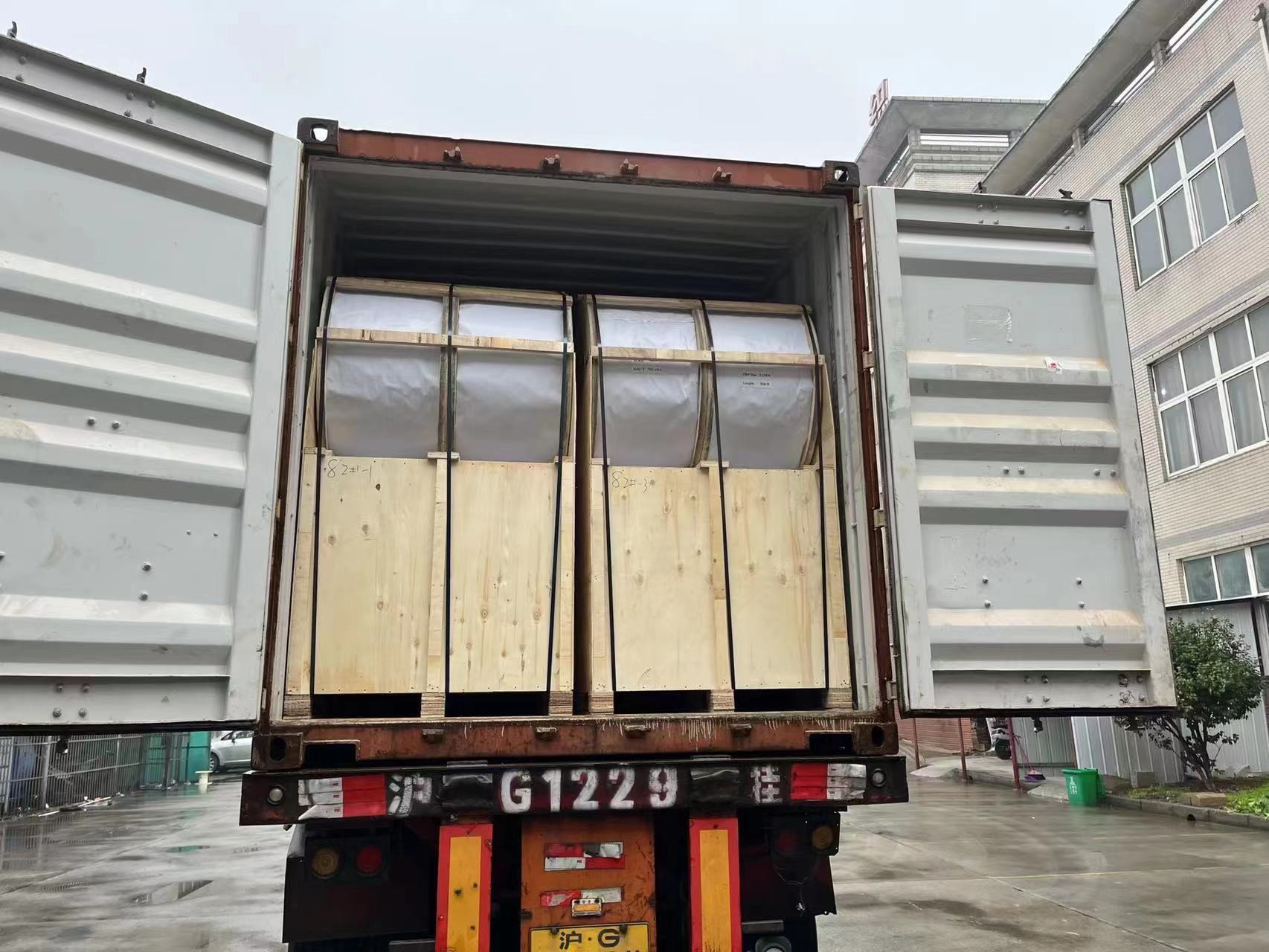

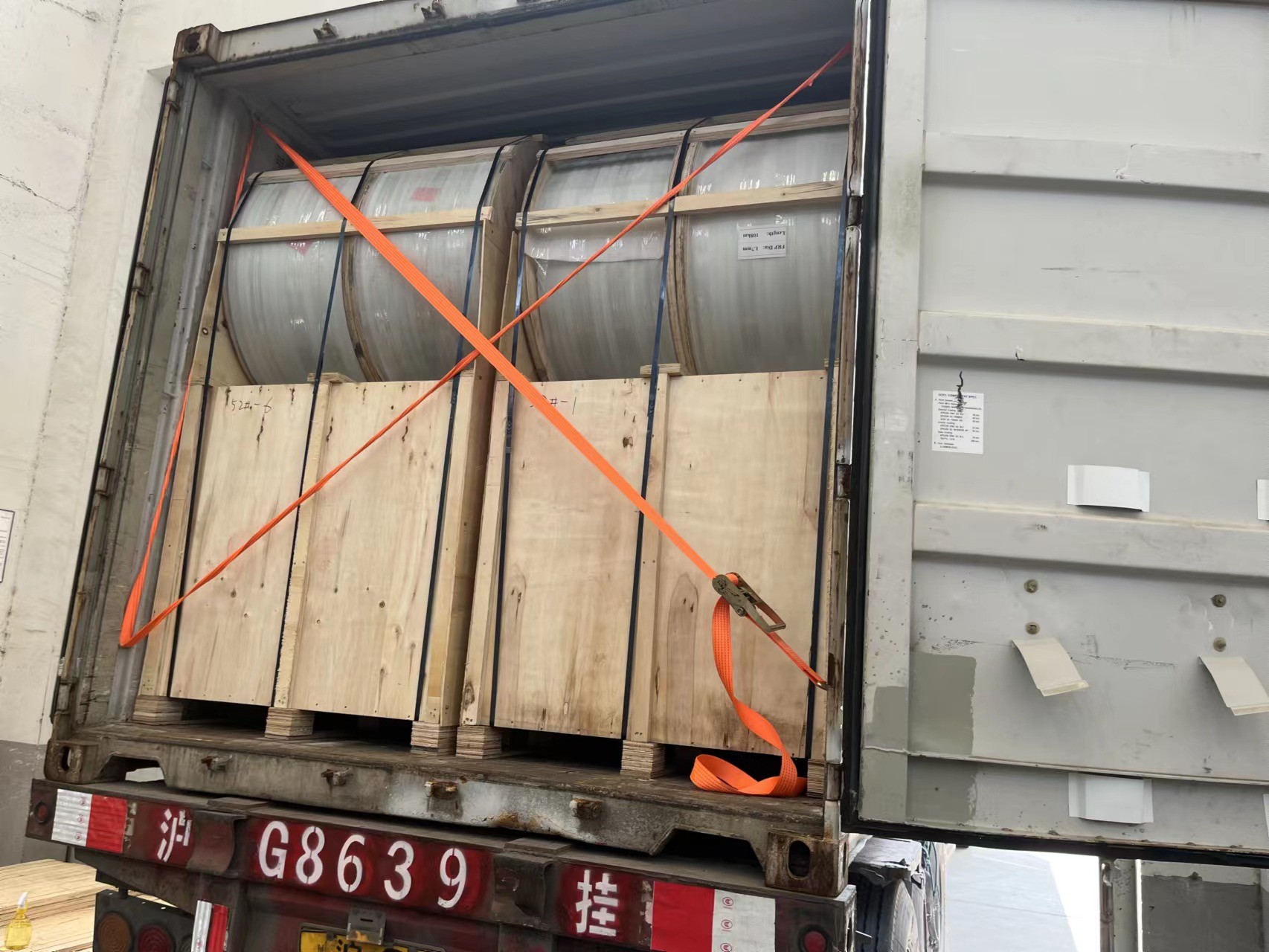

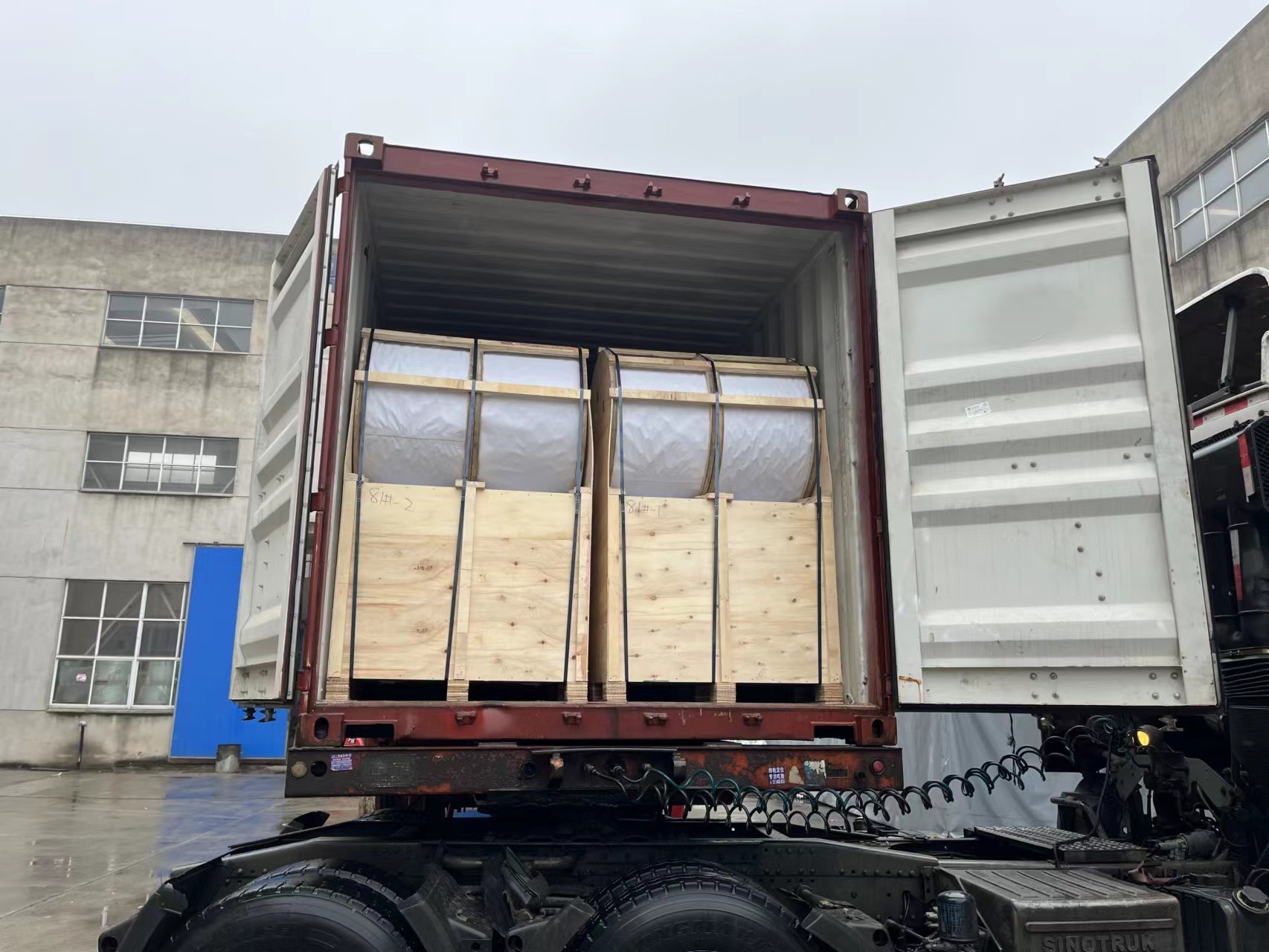

Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 5000Km/Month
Contact Now
Detailed Product Description
Keywords: FRP Central Strength Member Material: FRP
Type: FRP Composite Sheet Packing: Plywood Reel Or Plastic Reel
Spool Length: 50.4km/reel, 25.2km/reel Or Customized High Temperature Bending Test (100℃, 24h, 30D): No Cracks, No Uneven Spots, Surface Smooth
High Light:

Di Electric Composite FRP Member

,

FRP Composite Sheet Strength Member

,

FRP Central Rod Strength Member

Di-Electric Composite FRP Rod Strength Member For FOC



FRP Rod Strength Member, a di-electric composite cable strength member, is to use vinyl ester resin as foundation combined with the strength of glass fiber through pultrusion technology to produce a new type of high performance non-metallic composite material. Without drawbacks of traditional metallic strength member, FRP strength member features excellent anti-corrosion, electromagnetic interference free, high tensile strength, low weight, saving energy and environmentally friendly, which are now widely used in various optical fiber cables.





Optical Fiber Cable Strength Member Features:

  • High tensile strength, high modulus, low heat conductivity, low stretch, low expansion, wide range of temperature settings.

  • Insensitive to electric shock, suitable for the area with frequent lightning and raining.

  • Free from chemical corrosion. Compared with metal wire,FRP rod eliminates harmful gas, which can negatively affect cables transmission quality, born chemically by metal and filling gel.

  • Compared with metal wire, FRP is of high strength, low weight, excellent insulation and immune to electromagnetic interference.

  • Optical fiber cables with FRP are available to be installed tight close to power wire and power units, perfectly insulated, free from induction current interference. The transmission efficiency can be improved accordingly.

  • Smooth surface, stable sizes, easy processing and installation contribute to wide range of FRP strength member application.

1. Specification: 0.4mm-5.0mm (Diameter)

2. Features:

1) High tensile and light weight

2) Electromagnetic interference free

3) Anti-corrosion

4) Environmentally friendly

5) Bullet-proof, ant-proof and anti-tooth proof

3. Application: It is widely used as the central strengthen core for the various fiber optical cables



Specification Of FRP



Property Value
Appearance No deffets harmful use such as cracks, uneven spots, and contamination
Tensile strength ≥1100 Mpa
Tensile modulus ≥50 Gpa
Flexural strength ≥1100 Mpa
Flexural modulus ≥50 Gpa
Elongation at break ≤4 %
Diameter tolerance ±2% mm
Minimum bending radius 40*D mm
Density (g/cm3) 2.05-2.15
High temperature bending test (50D,100℃,120h) No bur, crack and break
Low temperature bending test (50D,-40℃,120h) No bur, crack and break




Advantage:

• Light Weight & Excellent Tensile Strength
• Most Suited for Multi-Loose Tube, Uni Tube, Slotted Core & Ribbon Cable Designs
• Dual Advantage : Reinforcement during Installation as well as Reduce Stress on Signal Carrying Optic Fibre /Conductor

• Used as Central or Peripheral Reinforcement in Fibre Optic Cables

• Prevent Cable Buckling• Prevent Sagging in Aerial Installation
• Cost Effective Solution as a Strength Member
