100% Strict FRP Rod Strength Member Inspection Machinable Light Weight

100% Strict FRP Rod Strength Member Inspection Machinable Light Weight

  • 100% Strict FRP Rod Strength Member Inspection Machinable Light Weight
  • 100% Strict FRP Rod Strength Member Inspection Machinable Light Weight
  • 100% Strict FRP Rod Strength Member Inspection Machinable Light Weight
  • 100% Strict FRP Rod Strength Member Inspection Machinable Light Weight
100% Strict FRP Rod Strength Member Inspection Machinable Light Weight
Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO9001
Model Number: Φ1.8
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation

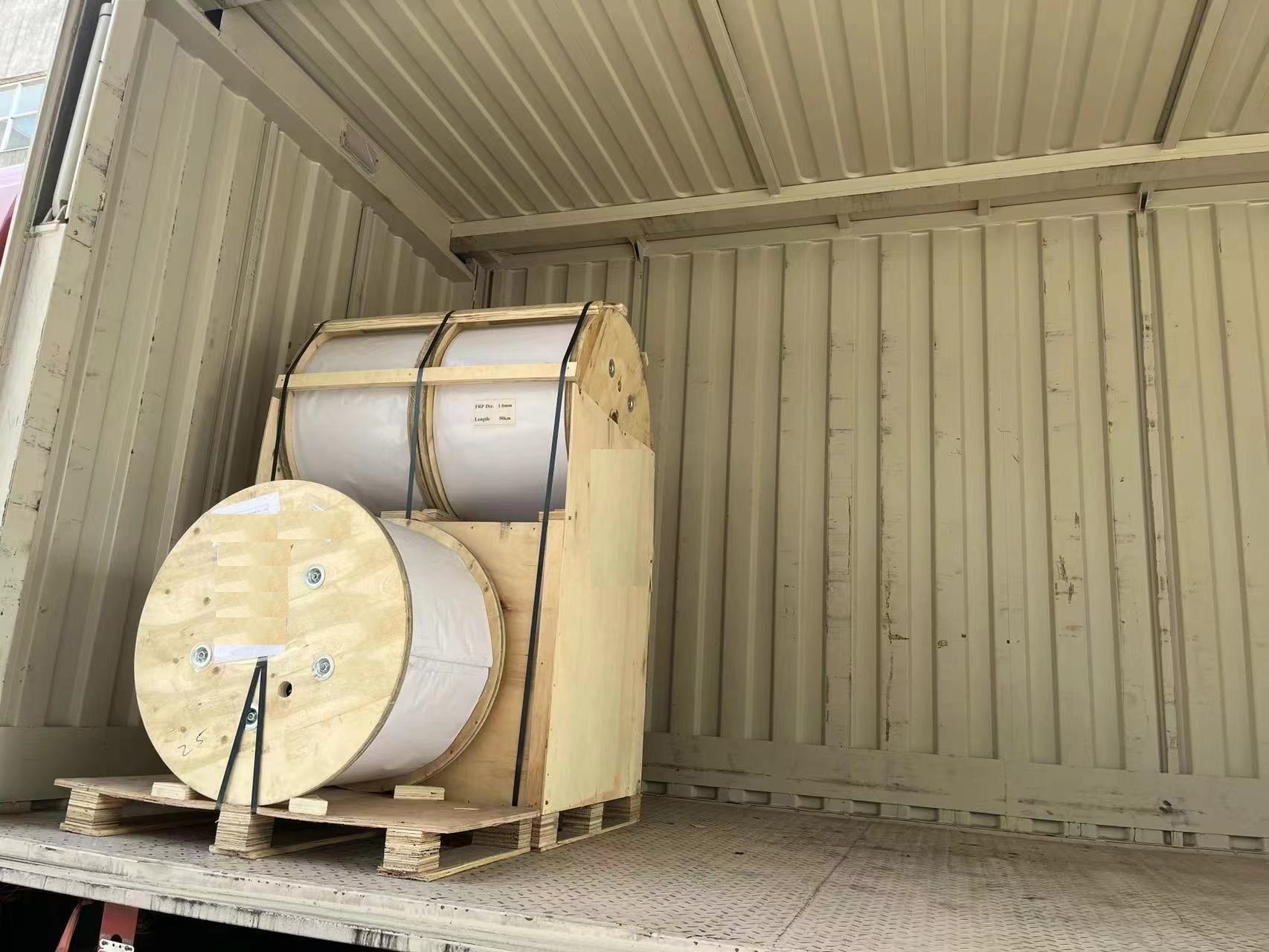

Packaging Details: Plywood reel or plastic reel
Delivery Time: 40days
Payment Terms: L/C, T/T
Supply Ability: 15000Km/Month
Contact Now
Detailed Product Description
Material: Glass Fiber Reinforced Plastic Product Name: FRP Strength
Function: Strengthen Packing: Plywood Reel Or Plastic Reel
Spool Length: 50.4km/reel, High Temperature Bending Test (100℃, 24h, 30D): No Cracks, No Uneven Spots, Surface Smooth
High Light:

thunderproof FRP Strength Member

,

100% Strict FRP Rod Strength Member

,

light weight FRP Rod Member

100% Strict Inspection Machinable FRP Strength Member FRP Rod



FRP rod is manufactured from fiber glass and resin by continuous pultrusion method.  FRP rod used in optic fiber cablehas superior anti-corrosion, thunder-proof, electromagnetic interference resistance, high tensile strength, light weight,environment friendly, no health hazards.



· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PE sheath protects cable from ultraviolet radiation
· 100% cable core filling



Property Values
Tensile strength (Mpa) ≥1500
Tensile modulus(Gpa) ≥50
Flexural strength(Mpa) ≥1100
Flexural modulus(Gpa) ≥50
Elongation at break (%) ≤4

Coefficient of linear thermal



expansion(-30-80℃)(1/℃)

<8*10-6
Diameter tolerance (mm) ±2%
Minimum bending radius(mm) 40*D
Density (g/cm3) 2.05-2.15
High temperature bending test(50D,100℃,120h)

No bur, crack and



break

Low temperature bending test(50D,-40℃,120h)

No bur, crack and



break

Torsion (±360°/m) Not disintegrated









Product Description

Fiber optical cable with FRP strength member 1/2/4 core single mode ftth drop wire cable



Most of the optical cables are single-core and double-core structures, and can also be made into a four-core structure. The cross-section is an 8-shaped cross-section. The reinforcement is located at the center of the two circles. The metal or non-metallic structure can be used. The optical fiber is located at the geometric center of the 8-shaped geometry. . G.657 small bending radius optical fiber is used for the optical fiber in the sheathed cable, which can be laid with a bending radius of 20mm, which is suitable for entering the house in the building by means of pipes or bum lines.







Product features:

1, Special bending-resistant optical fiber, providing greater bandwidth and enhancing network transmission performance

2, Two parallel FRP or metal reinforcements make the optical cable have good pressure resistance and protect the optical fiber
3, The optical cable has simple structure, light weight and strong practicability
4, Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;
5,Low-smoke halogen-free flame-retardant polyethylene sheath or flame-retardant PVC sheath, environmental protection
6,It can be matched with a variety of on-site connectors and can be completed on-site.


100% Strict FRP Rod Strength Member Inspection Machinable Light Weight 0

100% Strict FRP Rod Strength Member Inspection Machinable Light Weight 1

Application





1. Used for indoor wiring, directly used by end users;

2. Used for building optical fiber cables;

3. For indoor wiring of users in FTTH.


FAQ

1.About the price?
Re.We usually quote within 12 hours after we confirm the technical data of your products.

2.What's the payment method?
Re.We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.

3.What are your terms of payment?
Re.30% in advance,and 70% before shipment

4.How to ship the items to me?
Re.Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

5.How long is your delivery time?
Re.The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.
