ROD FRP Strength Member GRP For Fiber Optic Cables Chemical Resistance

ROD FRP Strength Member GRP For Fiber Optic Cables Chemical Resistance

  • ROD FRP Strength Member GRP For Fiber Optic Cables Chemical Resistance
ROD FRP Strength Member GRP For Fiber Optic Cables Chemical Resistance
Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO9001
Model Number: Φ0.4-Φ5.0
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation

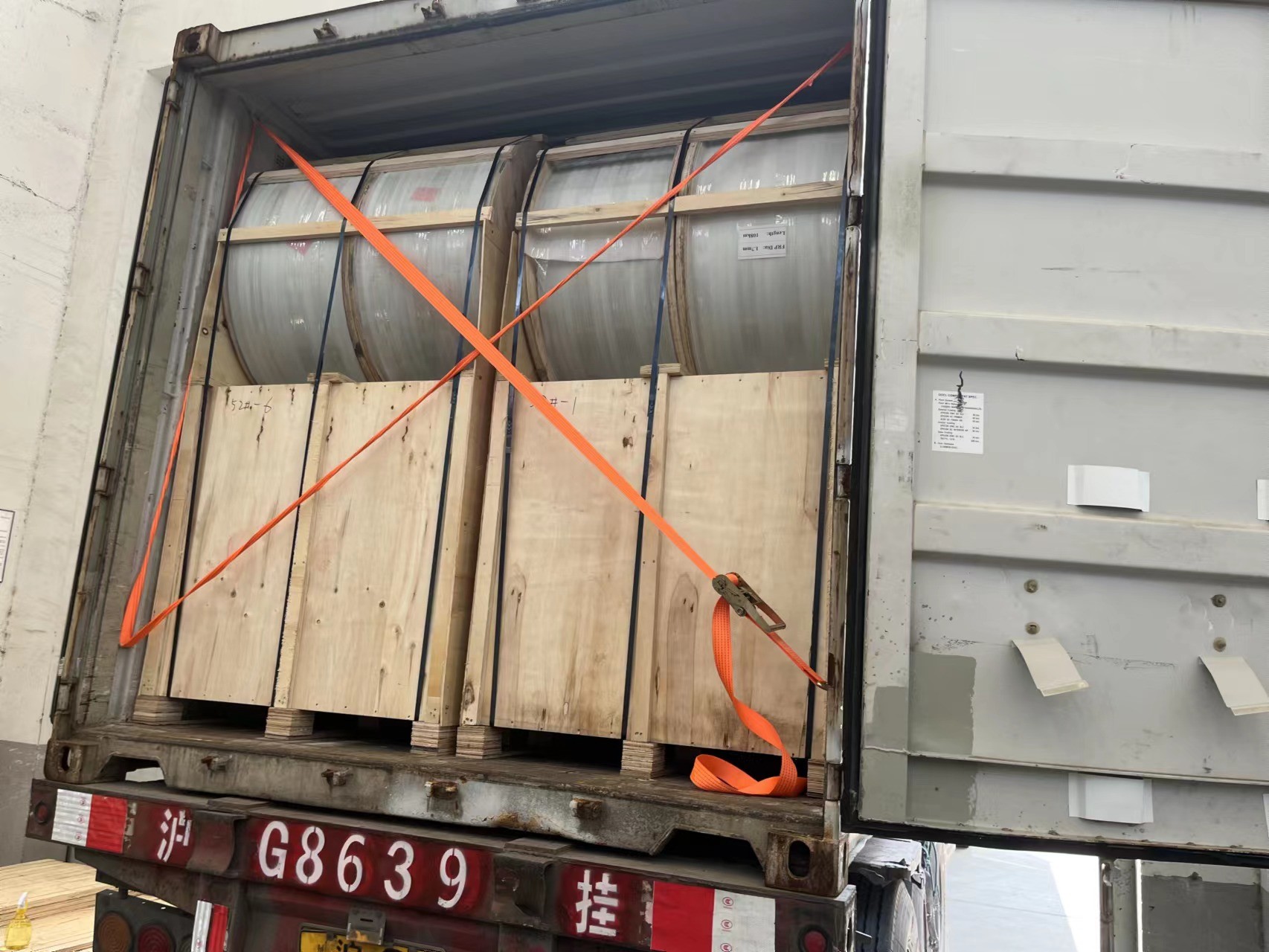

Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 5000Km/Month
Contact Now
Detailed Product Description
Product Name: FRP Strength Material: Glass Fiber Reinforced Plastic
Function: Strengthen Packing: Plywood Reel Or Plastic Reel
Spool Length: 50.4km/reel, 25.2km/reel Or Customized High Temperature Bending Test (100℃, 24h, 30D): No Cracks, No Uneven Spots, Surface Smooth
Highlight:

FRP Member For Fiber Optic Cables

,

GRP Strength Member

,

FRP Member Chemical resistance

FRP ROD FRP Strength Member GRP Strength Member For Fiber Optic Cables

  • High tensile strength, high modulus, low thermal conductivity, low elongation, low expansion, and wide temperature range;

  • Non-metallic materials are not sensitive to electric shock, and are suitable for areas with multiple lightning and rainy weather conditions;

  • Chemical resistance, compared with the metal core, the GFRP reinforcing core does not affect the fiber transmission index

  • The fiber optic cable using the GFRP reinforcing core can be installed next to the power line and the power supply device, and is not interfered by the induced current generated by the power line or the power supply device;

  • Smooth surface is , stable size, easy to process and lay, and the application range is wide.

Property Values
Tensile strength (Mpa) ≥1100
Tensile modulus(Gpa) ≥50
Flexural strength(Mpa) ≥1100
Flexural modulus(Gpa) ≥50
Elongation at break (%) ≤4

Coefficient of linear thermal



expansion(-30-80℃)(1/℃)

<8*10-6
Diameter tolerance (mm) ±2%
Minimum bending radius(mm) 40*D
Density (g/cm3) 2.05-2.15
High temperature bending test(50D,100℃,120h)

No bur, crack and



break

Low temperature bending test(50D,-40℃,120h)

No bur, crack and



break

Torsion (±360°/m) Not disintegrated









Product Description

Fiber optical cable with FRP strength member 1/2/4 core single mode ftth drop wire cable



Most of the optical cables are single-core and double-core structures, and can also be made into a four-core structure. The cross-section is an 8-shaped cross-section. The reinforcement is located at the center of the two circles. The metal or non-metallic structure can be used. The optical fiber is located at the geometric center of the 8-shaped geometry. . G.657 small bending radius optical fiber is used for the optical fiber in the sheathed cable, which can be laid with a bending radius of 20mm, which is suitable for entering the house in the building by means of pipes or bum lines.







Product features:

1, Special bending-resistant optical fiber, providing greater bandwidth and enhancing network transmission performance

2, Two parallel FRP or metal reinforcements make the optical cable have good pressure resistance and protect the optical fiber
3, The optical cable has simple structure, light weight and strong practicability
4, Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;
5,Low-smoke halogen-free flame-retardant polyethylene sheath or flame-retardant PVC sheath, environmental protection
6,It can be matched with a variety of on-site connectors and can be completed on-site.


ROD FRP Strength Member GRP For Fiber Optic Cables Chemical Resistance 0

ROD FRP Strength Member GRP For Fiber Optic Cables Chemical Resistance 1

Application





1. Used for indoor wiring, directly used by end users;

2. Used for building optical fiber cables;

3. For indoor wiring of users in FTTH.


FAQ

1.About the price?
Re.We usually quote within 12 hours after we confirm the technical data of your products.

2.What's the payment method?
Re.We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.

3.What are your terms of payment?
Re.30% in advance,and 70% before shipment

4.How to ship the items to me?
Re.Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

5.How long is your delivery time?
Re.The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.
