| Place of Origin: | China |
|---|---|
| Brand Name: | Dingrong |
| Certification: | ISO9001 |
| Model Number: | Φ0.4-Φ5.0 |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |

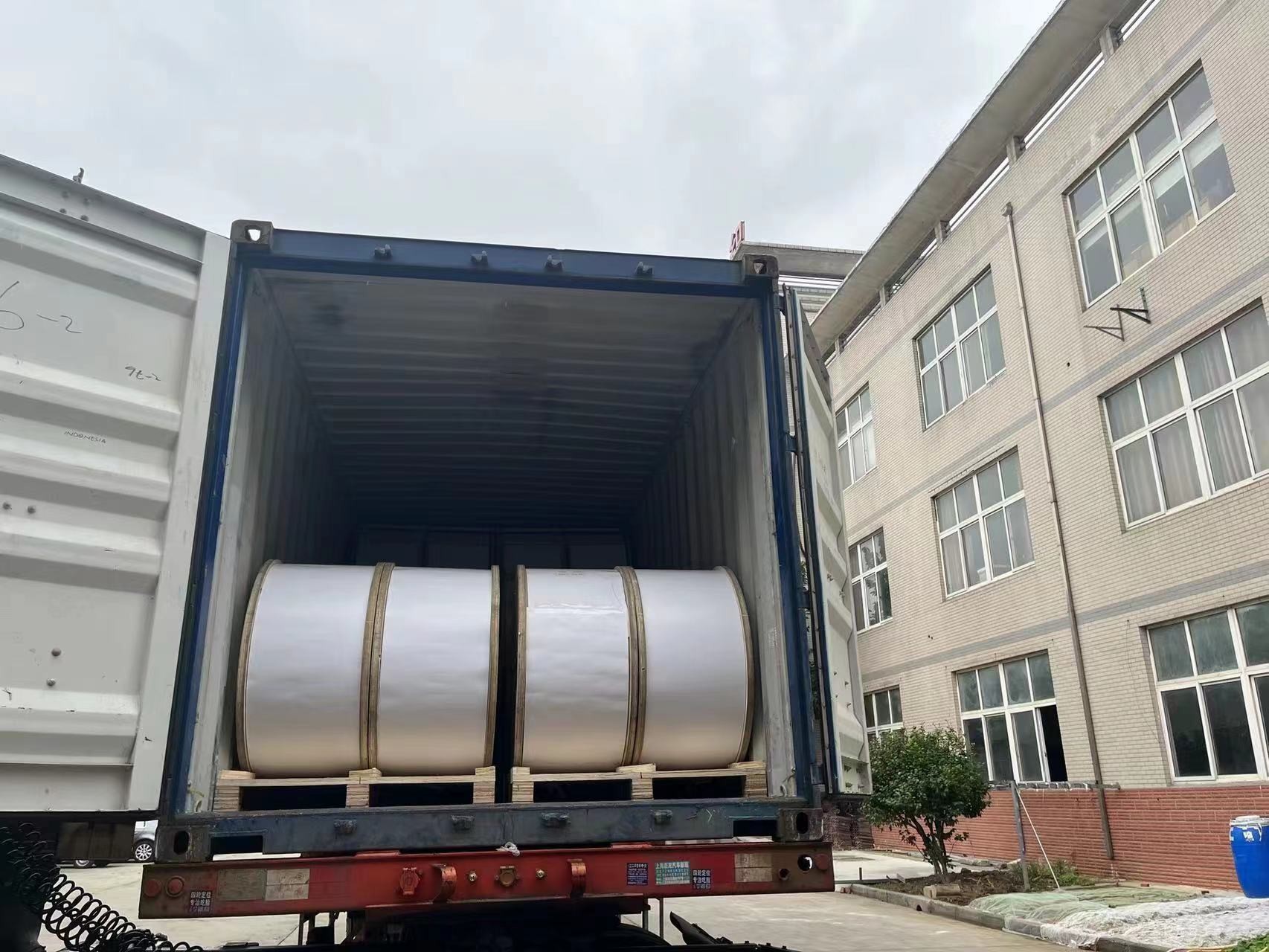

| Packaging Details: | Plywood reel or plastic reel |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000Km/Month |
| Product Name: | Strength Member | Material: | Fiber Reinforced Plastic |
|---|---|---|---|
| Function: | Strengthen | Packing: | Plywood Reel Or Plastic Reel |
| Spool Length: | 50.4km/reel, 25.2km/reel Or Customized | High Temperature Bending Test (100℃, 24h, 30D): | No Cracks, No Uneven Spots, Surface Smooth |
| Highlight: | Frp Strength Member surface smooth,Plastic Rod Fiberglass Frp Strength Member,no uneven spots Frp Member |
||
Fiber Reinforced Plastic Rod Fiberglass Frp Strength Member
FRP is a common reinforcement to provide strength and durability in fiber optic drop cable.
FRP is a composite material made up of fiberglass reinforcements and polymer resins, FRP can also stand for Fiberglass-Reinforced Polymer. The glass fiber provides the strength and stiffness, and the resin provides shape and protects the fibers
|
Glass Fiber reinforced plastic
|
|||||||||
|
0.5
|
0.6
|
0.8
|
1
|
1.2
|
1.25
|
1.3
|
1.4
|
1.5
|
1.6
|
|
1.8
|
2
|
2.1
|
2.2
|
2.3
|
2.4
|
2.5
|
2.6
|
2.7
|
2.8
|
|
3
|
3.2
|
3.3
|
3.5
|
|
|
|
|
|
|
|
No.
|
Parameter
|
Unit
|
Value
|
|
1
|
Diameter tolerance
|
mm
|
0.05
|
|
2
|
Density
|
g/cm3
|
2.05 - 2.15
|
|
3
|
Appearance
|
|
No cracks or flaws on the surface
|
|
4
|
Tensile strength
|
MPa
|
≥1200
|
|
5
|
Tensile modulus
|
MPa
|
≥50
|
|
6
|
Flexural strength
|
MPa
|
≥1200
|
|
7
|
Flexural modulus
|
MPa
|
≥50
|
|
8
|
Coefficient of linear thermal expansion
|
1/℃ (-30℃ ~ +80℃)
|
＜8×10-6
|
|
9
|
Elongation at break
|
%
|
2.5 - 4.0
|
|
10
|
Water absorption after 24 hrs
|
%
|
≤0.1
|
|
11
|
Minimum bending radius
|
mm (25℃)
|
25D
|
|
12
|
High temperature bending performance
|
50D, 100℃, 120h
|
No decomposition or delamination
|
|
13
|
Low temperature bending performance
|
50D, -40℃, 120h
|
No decomposition or delamination
|
|
14
|
Water resistance
|
80D, 80℃
|
No decomposition or delamination
|
Following is the one of material Of FRP member:
