Wuxi Dingrong Composite Material Technology Co. Ltd
We grow with you！
 |
| Place of Origin: | China |
| Brand Name: | Dingrong |
| Certification: | ISO9001 |
| Model Number: | Φ1.8 |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood reel or plastic reel |
| Delivery Time: | 40days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 15000Km/Month |
| Material: | Glass Fiber Reinforced Plastic | Product Name: | FRP Strength |
|---|---|---|---|
| Function: | Strengthen | Packing: | Plywood Reel Or Plastic Reel |
| Spool Length: | 50.4km/reel, | High Temperature Bending Test (100℃, 24h, 30D): | No Cracks, No Uneven Spots, Surface Smooth |
| Highlight: | FRP Member Optical Cable Core,2.5mm FRP Member,Glass Fiber FRP Cable Core |
||

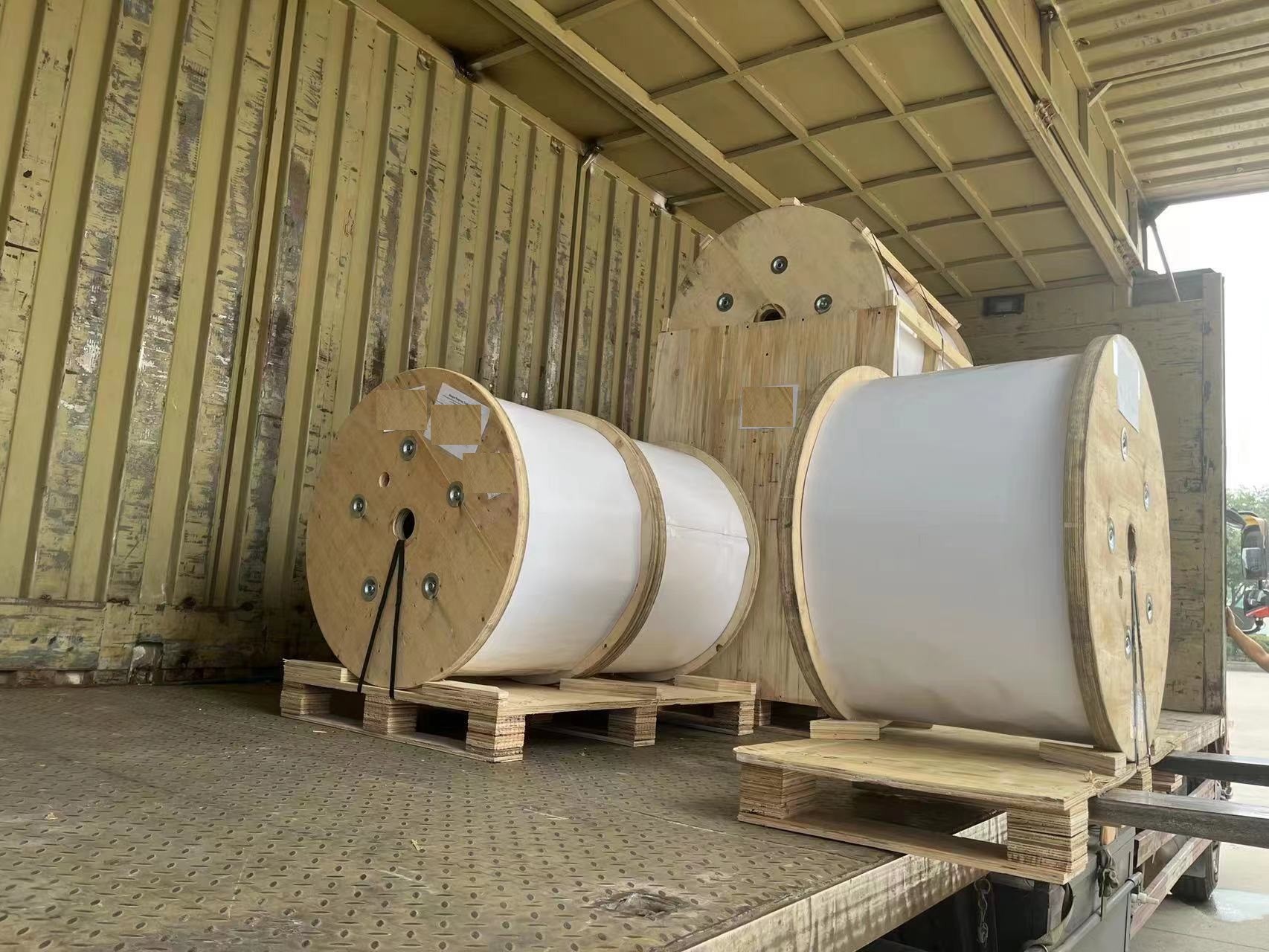

2.5mm Glass Fiber Reinforced Optical Cable Core Fiberglass Rod
| Property | Values |
| Tensile strength (Mpa) | ≥1500 |
| Tensile modulus(Gpa) | ≥50 |
| Flexural strength(Mpa) | ≥1100 |
| Flexural modulus(Gpa) | ≥50 |
| Elongation at break (%) | ≤4 |
|
Coefficient of linear thermal
expansion(-30-80℃)(1/℃) |
＜8*10-6 |
| Diameter tolerance (mm) | ±2% |
| Minimum bending radius(mm) | 40*D |
| Density (g/cm3) | 2.05-2.15 |
| High temperature bending test(50D,100℃,120h) |
No bur, crack and
break |
| Low temperature bending test(50D,-40℃,120h) |
No bur, crack and
break |
| Torsion (±360°/m) | Not disintegrated |
Fiber optical cable with FRP strength member 1/2/4 core single mode ftth drop wire cable
Most of the optical cables are single-core and double-core structures, and can also be made into a four-core structure. The cross-section is an 8-shaped cross-section. The reinforcement is located at the center of the two circles. The metal or non-metallic structure can be used. The optical fiber is located at the geometric center of the 8-shaped geometry. . G.657 small bending radius optical fiber is used for the optical fiber in the sheathed cable, which can be laid with a bending radius of 20mm, which is suitable for entering the house in the building by means of pipes or bum lines.
Product features:
1, Special bending-resistant optical fiber, providing greater bandwidth and enhancing network transmission performance
Application
1. Used for indoor wiring, directly used by end users;
2. Used for building optical fiber cables;
3. For indoor wiring of users in FTTH.
