No Cracks FRP Strength Member 04 Mm Direct Factory Glass Fiber

No Cracks FRP Strength Member 04 Mm Direct Factory Glass Fiber

  • No Cracks FRP Strength Member 04 Mm Direct Factory Glass Fiber
No Cracks FRP Strength Member 04 Mm Direct Factory Glass Fiber
Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO9001
Model Number: Φ1.7
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation

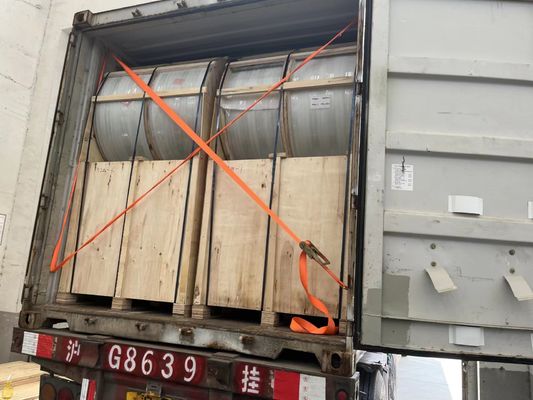

Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 5000Km/Month
Contact Now
Detailed Product Description
Product Name: FRP Strength Material: Glass Fiber Reinforced Plastic
Function: Strengthen Packing: Plywood Reel Or Plastic Reel
Spool Length: 50.4km/reel, 25.2km/reel Or Customized High Temperature Bending Test (100℃, 24h, 30D): No Cracks, No Uneven Spots, Surface Smooth
High Light:

plastic reel Frp Strength Member Rods

,

FRP Strength Member No Cracks

,

Glass Fiber Reinforced FRP Member

FRP Strength Member 04 Mm Direct Factory From China



FRP Rod Strength Member, a di-electric composite cable strength member widely known as FRP/ GRP rod, is to use vinyl ester resin as foundation combined with the strength of glass fiber through pultrusion technology to produce a new type of high performance non-metallic composite material. Without drawbacks of traditional metallic strength member, FRP strength member features excellent anti-corrosion, electromagnetic interference free, high tensile strength, low weight, saving energy and environmentally friendly, which are now widely used in various optical fiber cables.





FRP Test Item
Unit (or Condition)
Technical Parameter
Ovality
%
<5
Appearance

Smooth surface, no bur, no crack
Diameter Tolerance
%
±2
Density
g/cm3
2.05~2.15
Tensile Strength
MPa
≥1100
Elastic Tensile Modulus
GPa
≥50
Bending Strength
MPa
≥1100
Flexural Modulus
GPa
≥50
Elongation at Break
%
2.5% < x < 4%
Coefficient of Linear Expansion
1/°C (-30°C ~ +80°C)
≤8×10-6
Heat Shrinkage
%
0
Water Absorption
%
≤0.1
Minimum Bending Radius
mm (20°C ± 5°C)
25D
High Temperature Bending Performance
(50D, 100°C, 120h)
No bur, no crack, no break, smooth surface, back to original straight
Low Temperature Bending Performance
(50D, -40°C, 120h)
No bur, no crack, no break, smooth surface, back to original straight
Twisting Test
±360°/m
Non-disintegration





Property Values
Tensile strength (Mpa) ≥1500
Tensile modulus(Gpa) ≥50
Flexural strength(Mpa) ≥1100
Flexural modulus(Gpa) ≥50
Elongation at break (%) ≤4

Coefficient of linear thermal



expansion(-30-80℃)(1/℃)

<8*10-6
Diameter tolerance (mm) ±2%
Minimum bending radius(mm) 40*D
Density (g/cm3) 2.05-2.15
High temperature bending test(50D,100℃,120h)

No bur, crack and



break

Low temperature bending test(50D,-40℃,120h)

No bur, crack and



break

Torsion (±360°/m) Not disintegrated









Product Description

Fiber optical cable with FRP strength member 1/2/4 core single mode ftth drop wire cable



Most of the optical cables are single-core and double-core structures, and can also be made into a four-core structure. The cross-section is an 8-shaped cross-section. The reinforcement is located at the center of the two circles. The metal or non-metallic structure can be used. The optical fiber is located at the geometric center of the 8-shaped geometry. . G.657 small bending radius optical fiber is used for the optical fiber in the sheathed cable, which can be laid with a bending radius of 20mm, which is suitable for entering the house in the building by means of pipes or bum lines.







Product features:

1, Special bending-resistant optical fiber, providing greater bandwidth and enhancing network transmission performance

2, Two parallel FRP or metal reinforcements make the optical cable have good pressure resistance and protect the optical fiber
3, The optical cable has simple structure, light weight and strong practicability
4, Unique groove design, easy to peel, easy to connect, simplify installation and maintenance;
5,Low-smoke halogen-free flame-retardant polyethylene sheath or flame-retardant PVC sheath, environmental protection
6,It can be matched with a variety of on-site connectors and can be completed on-site.


No Cracks FRP Strength Member 04 Mm Direct Factory Glass Fiber 0

No Cracks FRP Strength Member 04 Mm Direct Factory Glass Fiber 1

Application





1. Used for indoor wiring, directly used by end users;

2. Used for building optical fiber cables;

3. For indoor wiring of users in FTTH.
