Place of Origin: | China |
Brand Name: | Dingrong |
Certification: | ISO9001 |
Model Number: | Φ0.4-Φ5.0 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |

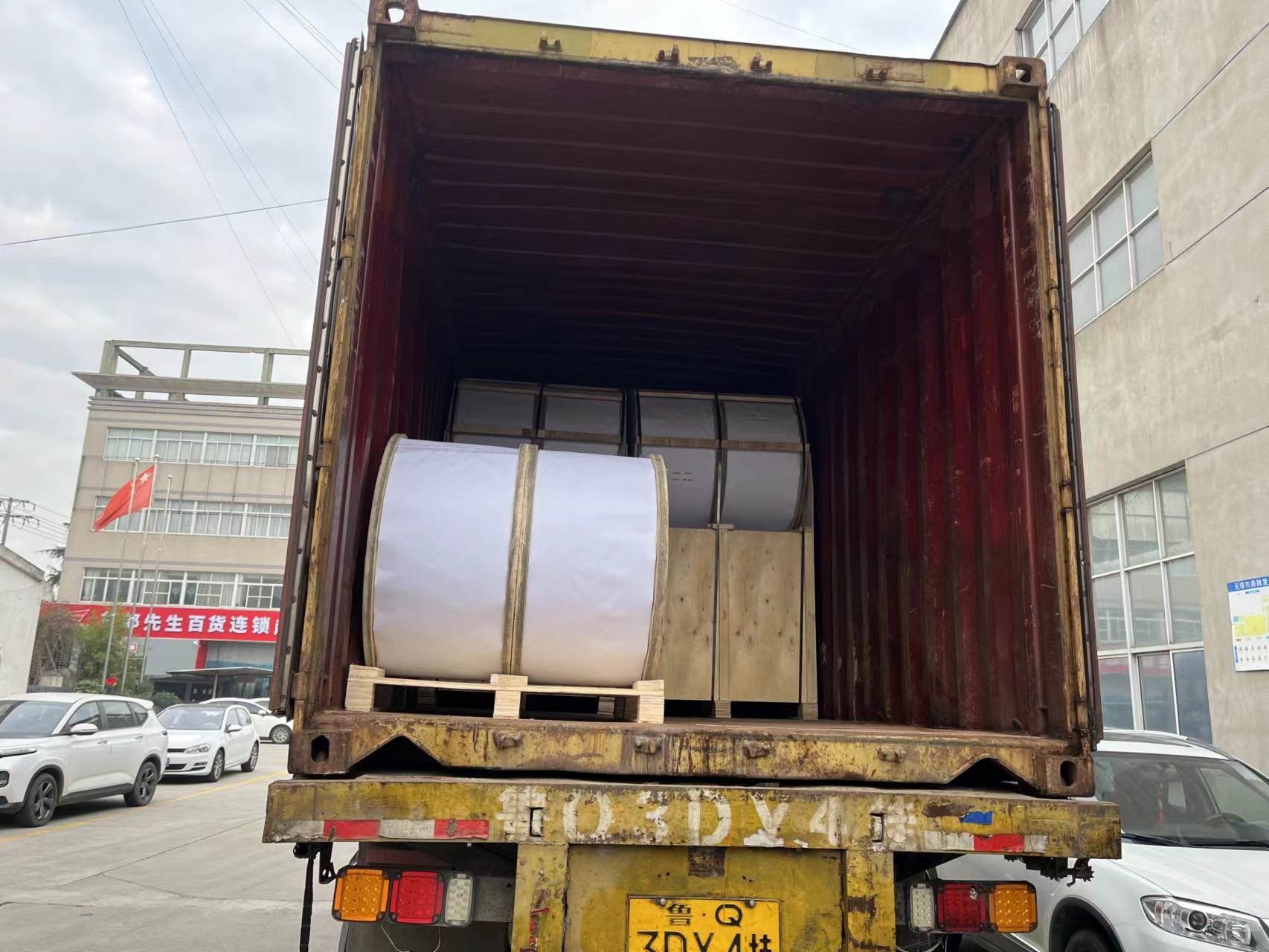

Packaging Details: | Plywood reel or plastic reel |
Delivery Time: | 30days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5000Km/Month |
High Temperature Bending Test (100℃, 24h, 30D): | No Cracks, No Uneven Spots, Surface Smooth | Product Name: | FRP Strength |
---|---|---|---|
Oem: | Available | Function: | Strengthen |
Spool Length: | 50.4km/reel, 25.2km/reel Or Customized | Material: | Glass Fiber Reinforced Plastic |
Packing: | Plywood Reel Or Plastic Reel | Color: | Customized |
Highlight: | ISO9001 Frp Strength Member Rods,Smooth Surface Frp Strength Member Rods,Customized Frp Strength Member Rods |
FRP Rod For Fiber Optic Cable Φ0.4 - Φ5.0 50.4km / Reel 25.2km / Reel
Fiber optical cable with FRP strength member 1/2/4 core single mode ftth drop wire cable
Most of the optical cables are single-core and double-core structures, and can also be made into a four-core structure. The cross-section is an 8-shaped cross-section. The reinforcement is located at the center of the two circles. The metal or non-metallic structure can be used. The optical fiber is located at the geometric center of the 8-shaped geometry. . G.657 small bending radius optical fiber is used for the optical fiber in the sheathed cable, which can be laid with a bending radius of 20mm, which is suitable for entering the house in the building by means of pipes or bum lines.
Material
|
Fiber glass and resin
|
Feature
|
High tensile strength, high modulus
|
Surface Treatmen
|
Smooth
|
Dimensions
|
0.40-5.00 mm
|
Standard
|
ISO/GB
|
Delivery Length
|
50km/reel, 25km/reel or customized
|
Application
|
Strength Member for Fiber Optic Cables
|
Technique
|
Pultrusion
|
Certification
|
ISO9001:2008, SGS
|
Packing
|
Plywood reel or plastic reel
|
QC System:
|
100% Strict Inspection
|
Operating Tempera
|
-40°C~+60°C
|
color
|
white
|
Property | Values |
Tensile strength (Mpa) | ≥1100 |
Tensile modulus(Gpa) | ≥50 |
Flexural strength(Mpa) | ≥1100 |
Flexural modulus(Gpa) | ≥50 |
Elongation at break (%) | ≤4 |
Coefficient of linear thermal
expansion(-30-80℃)(1/℃) |
<8*10-6 |
Diameter tolerance (mm) | ±2% |
Minimum bending radius(mm) | 40*D |
Density (g/cm3) | 2.05-2.15 |
High temperature bending test(50D,100℃,120h) |
No bur, crack and
break |
Low temperature bending test(50D,-40℃,120h) |
No bur, crack and
break |
Torsion (±360°/m) | Not disintegrated |
Product features:
1, Special bending-resistant optical fiber, providing greater bandwidth and enhancing network transmission performance
Application
1. Used for indoor wiring, directly used by end users;
2. Used for building optical fiber cables;
3. For indoor wiring of users in FTTH.
1.About the price?
Re.We usually quote within 12 hours after we confirm the technical data of your products.
2.What's the payment method?
Re.We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.
3.What are your terms of payment?
Re.30% in advance,and 70% before shipment
4.How to ship the items to me?
Re.Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.
5.How long is your delivery time?
Re.The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.
