3.5mm FRP Reinforced Core Member For Optic Cable 50.4km/Reel

3.5mm FRP Reinforced Core Member For Optic Cable 50.4km/Reel

  • 3.5mm FRP Reinforced Core Member For Optic Cable 50.4km/Reel
3.5mm FRP Reinforced Core Member For Optic Cable 50.4km/Reel
Product Details:
Place of Origin: China
Brand Name: Dingrong
Certification: ISO9001
Model Number: Φ0.4-Φ5.0
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation

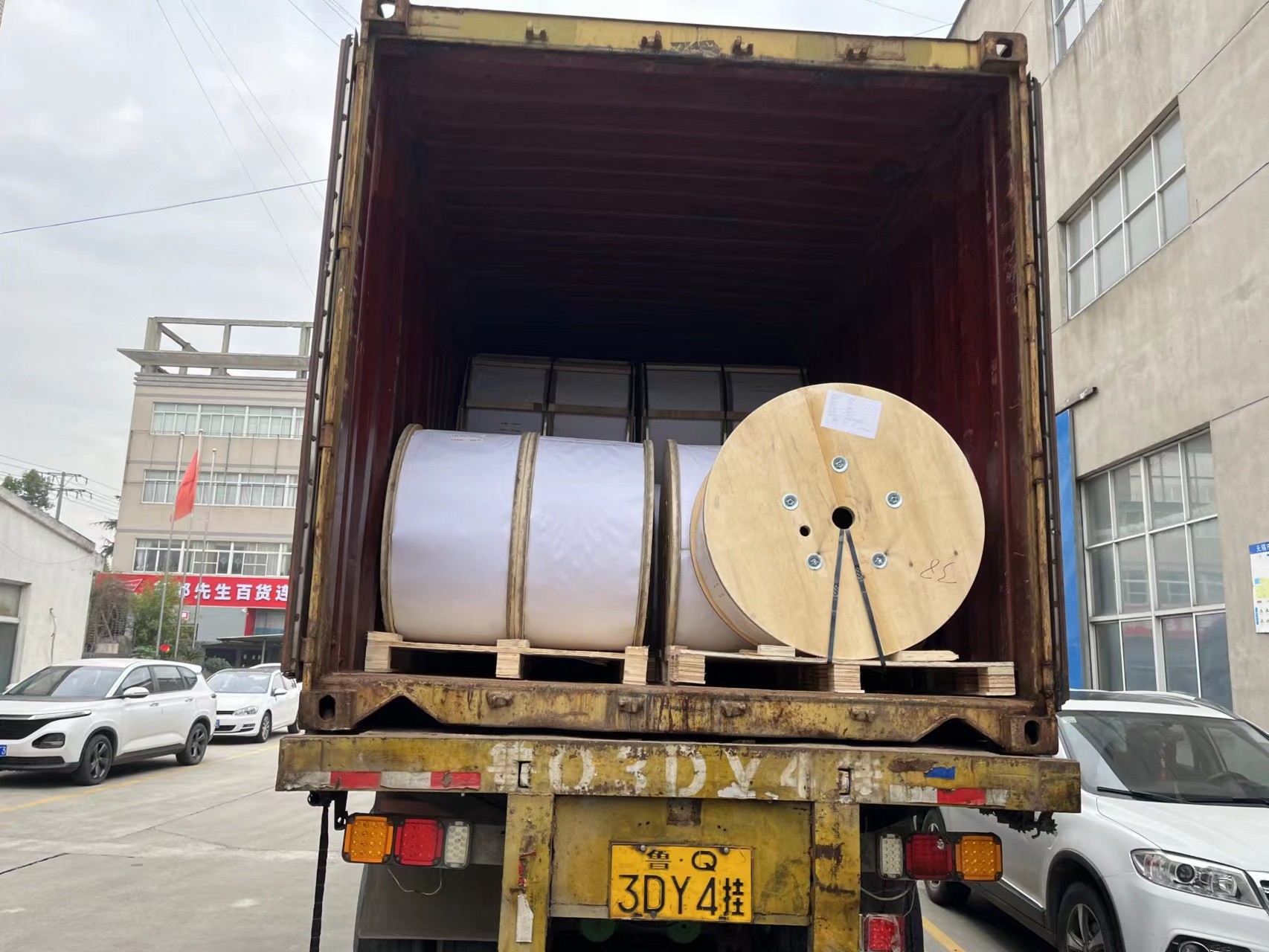

Packaging Details: Plywood reel or plastic reel
Delivery Time: 30days
Payment Terms: L/C, T/T
Supply Ability: 5000Km/Month
Contact Now
Detailed Product Description
Keywords: FRP Central Strength Member Material: FRP
Type: FRP Composite Sheet Packing: Plywood Reel Or Plastic Reel
Spool Length: 50.4km/reel, 25.2km/reel Or Customized High Temperature Bending Test (100℃, 24h, 30D): No Cracks, No Uneven Spots, Surface Smooth
High Light:

3.5mm FRP Reinforced Core Member

,

50.4 km/Reel FRP Reinforced Core Member

,

Optic Cable FRP Reinforced Core Member

FRP Reinforced Core 3.5mm For Optic Cable 50.4km/Reel





Currently used strength member for fiber optic cables are metallic and non-metallic strength member. Single steel wire or steel strand is frequent working as metallic reinforcement, while non-metallic strength member is from fiber glass reinforced plastic (FRP rod) or aramid yarn or aramid rod. FRP is often located in the central or two flanks of cables, aramid fiber is in the central or between two sheaths.



1. Specification: 0.4mm-5.0mm (Diameter)

2. Features:

1) High tensile and light weight

2) Electromagnetic interference free

3) Anti-corrosion

4) Environmentally friendly

5) Bullet-proof, ant-proof and anti-tooth proof

3. Application: It is widely used as the central strengthen core for the various fiber optical cables







The strength member is structurally vital and protective for cables. The structural strength of the strength member is one important indicator for the mechanical properties of fiber optic cables. As the fastening component, the strength member supports the majority of structural strength of fiber optic cables and plays a vital role in enhancing the tensile strength and impact strength.









Specification Of FRP



Property Value
Appearance No deffets harmful use such as cracks, uneven spots, and contamination
Tensile strength ≥1100 Mpa
Tensile modulus ≥50 Gpa
Flexural strength ≥1100 Mpa
Flexural modulus ≥50 Gpa
Elongation at break ≤4 %
Diameter tolerance ±2% mm
Minimum bending radius 40*D mm
Density (g/cm3) 2.05-2.15
High temperature bending test (50D,100℃,120h) No bur, crack and break
Low temperature bending test (50D,-40℃,120h) No bur, crack and break




Advantage:

• Light Weight & Excellent Tensile Strength
• Most Suited for Multi-Loose Tube, Uni Tube, Slotted Core & Ribbon Cable Designs
• Dual Advantage : Reinforcement during Installation as well as Reduce Stress on Signal Carrying Optic Fibre /Conductor

• Used as Central or Peripheral Reinforcement in Fibre Optic Cables

• Prevent Cable Buckling• Prevent Sagging in Aerial Installation
• Cost Effective Solution as a Strength Member
